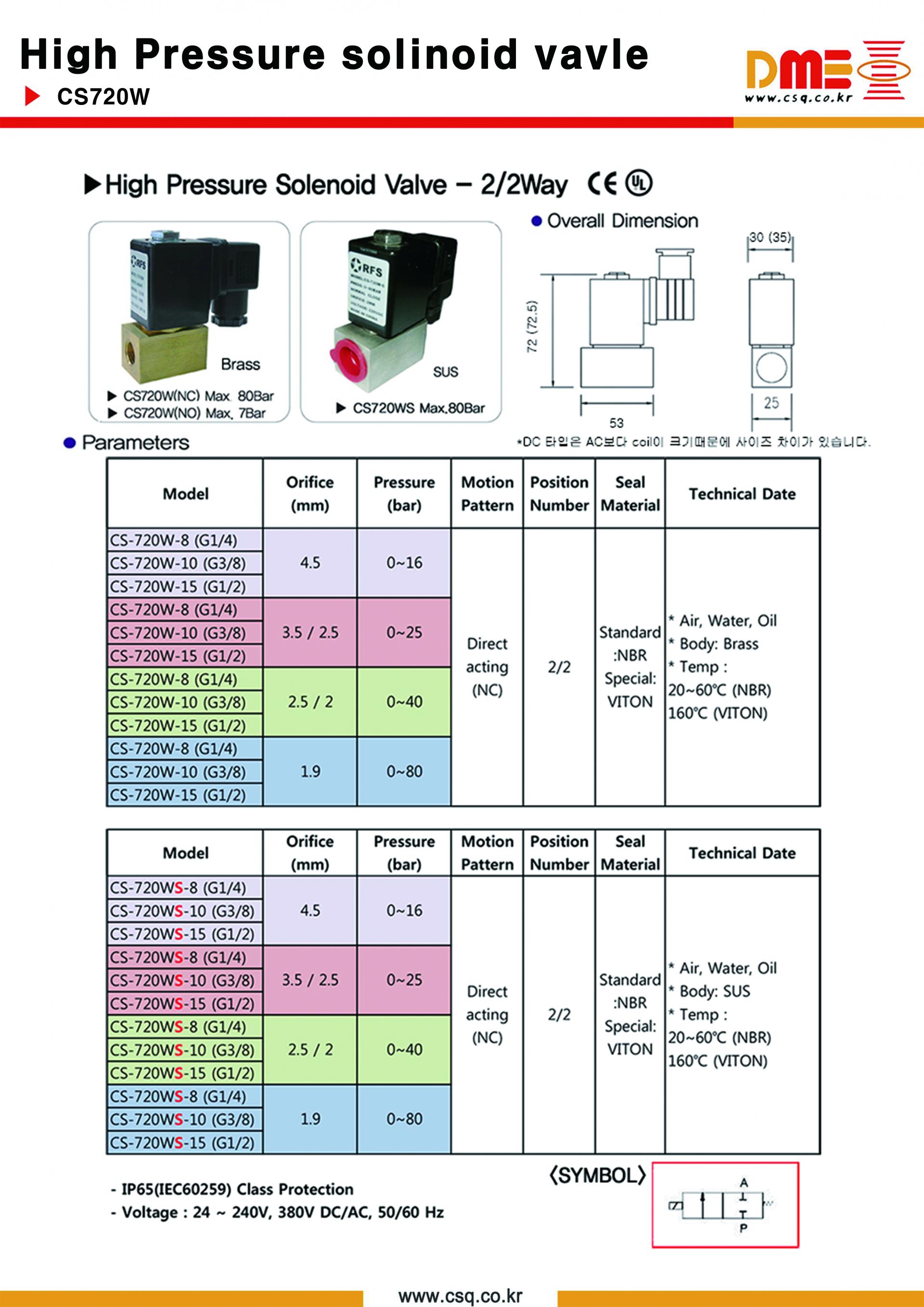

CS-720W●(CS720W)●CS720W-15(CS720W15)●CS720W-10(CS720W10)●CS720W-08(CS720W08)●2/2way NC High Pressure Solenoid Valve●RFS 고압 솔레노이드 밸브●RFS 고압 밸브●RFS 고압 솔밸브●(G1/4 F~G1/2 F)●(0~16bar)●(0~80bar)●(RFS)

CS-720W 카탈로그 CS Series 카탈로그 SB256 UL인증서

●(2/2way, NC, bress, solenoid valve) (80bar) (G1/2 F)

(body=bress) (seal=VITON)

●CS720W-15-(orifice=2mm)-(80bar)-2D-AC220V (G1/2 F)

(DME0413)

●CS720W-15-(orifice=2mm)-(80bar)-1D-AC110V (G1/2 F)

(DME0414)

●CS720W-15-(orifice=2mm)-(80bar)-8D- DC24V (G1/2 F)

(DME0415)

●(2/2way, NC, bress, solenoid valve) (80bar) (G3/8 F)

(body=bress) (seal=VITON)

●CS720W-10-(orifice=2mm)-(80bar)-2D-AC220V (G3/8 F)

(DME3881)

●CS720W-10-(orifice=2mm)-(80bar)-1D-AC110V (G3/8 F)

(DME0411)

●CS720W-10-(orifice=2mm)-(80bar)-8D- DC24V (G3/8 F)

(DME0412)

●CS720W-10-(orifice=2mm)-(80bar)-8D- DC12V (G3/8 F)

(DME4512)

●(2/2way, NC, bress, solenoid valve) (80bar) (G1/4 F)

(body=bress) (seal=VITON)

●CS720W-08-(orifice=2mm)-(80bar)-2D-AC220V (G1/4 F)

(DME0407)

●CS720W-08-(orifice=2mm)-(80bar)-1D-AC110V (G1/4 F)

(DME0408)

●CS720W-08-(orifice=2mm)-(80bar)-8D-DC24V(G1/4 F)

(DME0409)

●(2/2way,NC, bress, solenoid valve) (16bar) (G1/2 F)

(body=bress) (seal=VITON)

●CS720W-15-(orifice=4.5mm)-(16bar)-2D-AC220V (G1/2 F)

(DME0417)

●CS720W-15-(orifice=4.5mm)-(16bar)-1D-AC110V (G1/2 F)

(DME2525)

●CS720W-15-(orifice=4.5mm)-(16bar)-8D-DC24V (G1/2 F)

(DME6648)

●(적용 coil=SB256=AC220V , SB256=AC380V , SB257=DC24V)

●AC coil UL인증품가능
