(standard, Pressure Transmitter)●압력트랜스미터●압력센서●압력센서●압력트랜스미터●압력측정센서●Pressure Switch●(TXYS same)●(0.5%FS)●(WOTIAN)

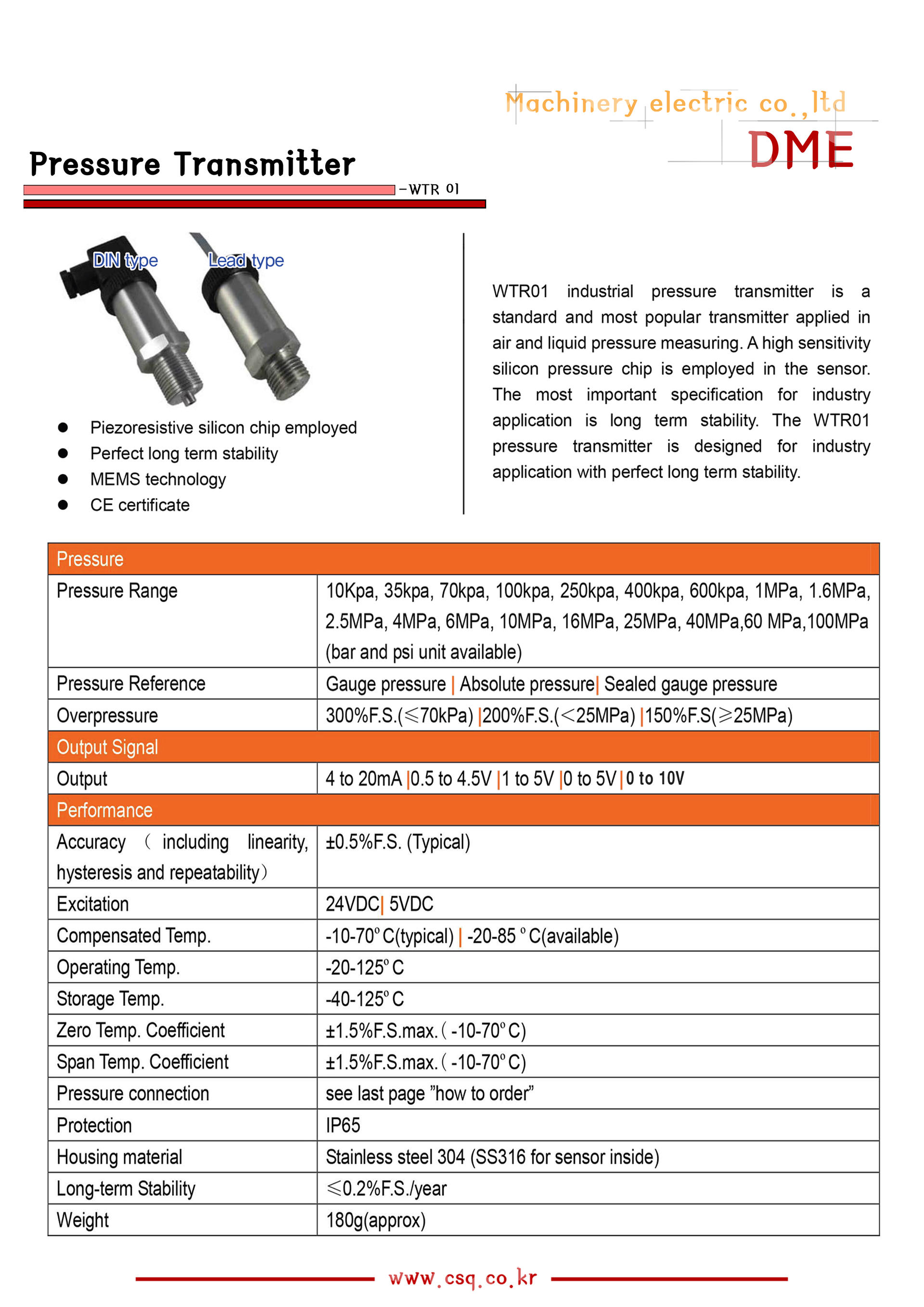

WTR01(TXYS) PDF 파일 CS1,2-PR 0~10V 결선도

CS1,2-PR 4~20mA 결선도

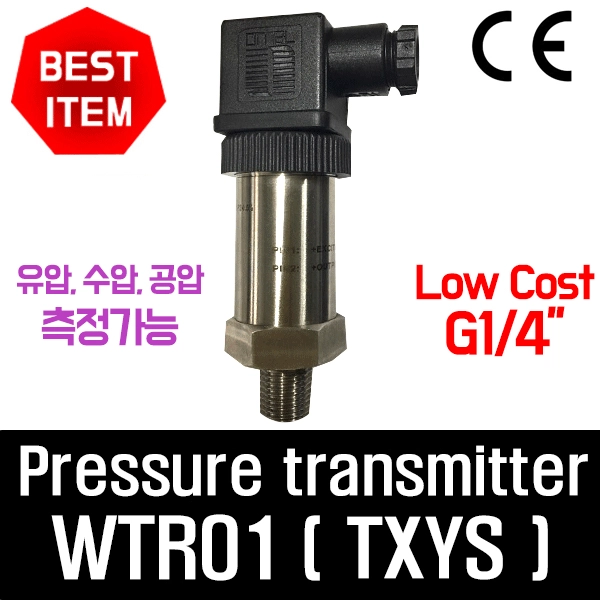

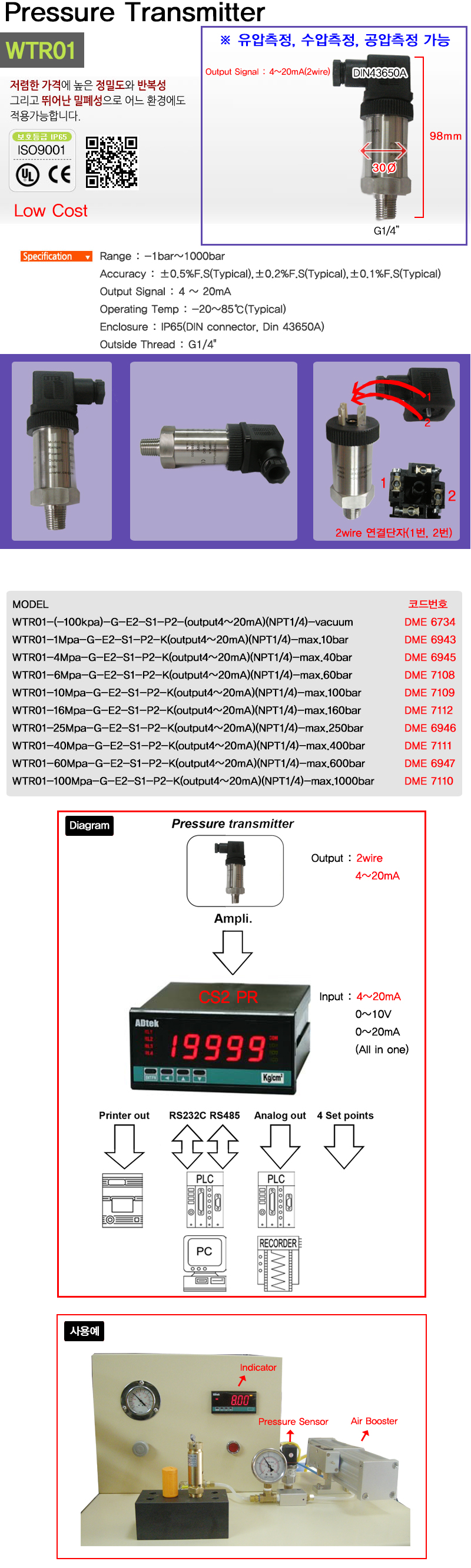

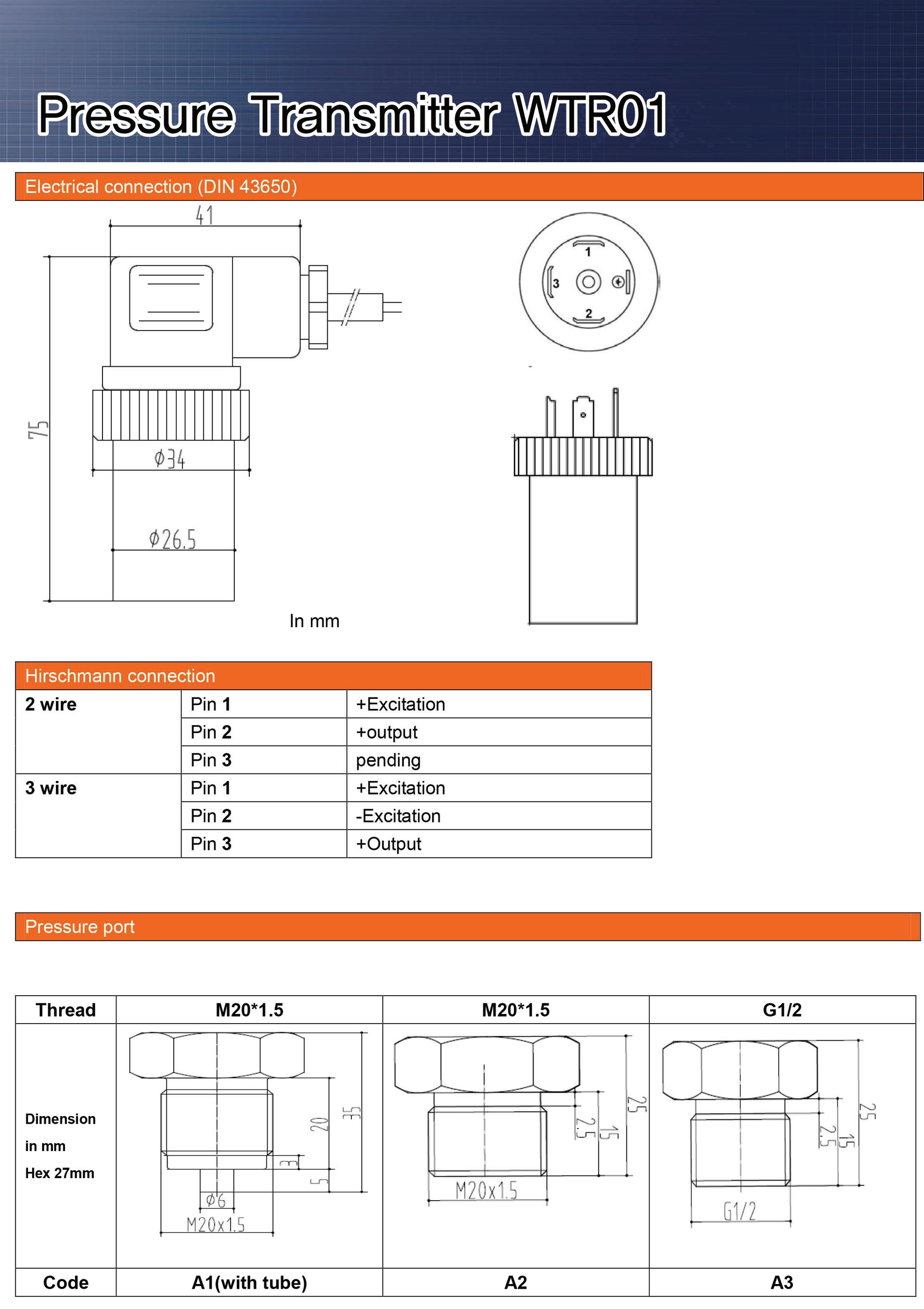

●WTR01 (TXYS) Pressure transmitter (DIN43650A)

●(Accuracy=0.5%) ●(output=4~20mA, 2wire) ●(connect=NPT1/4 M)

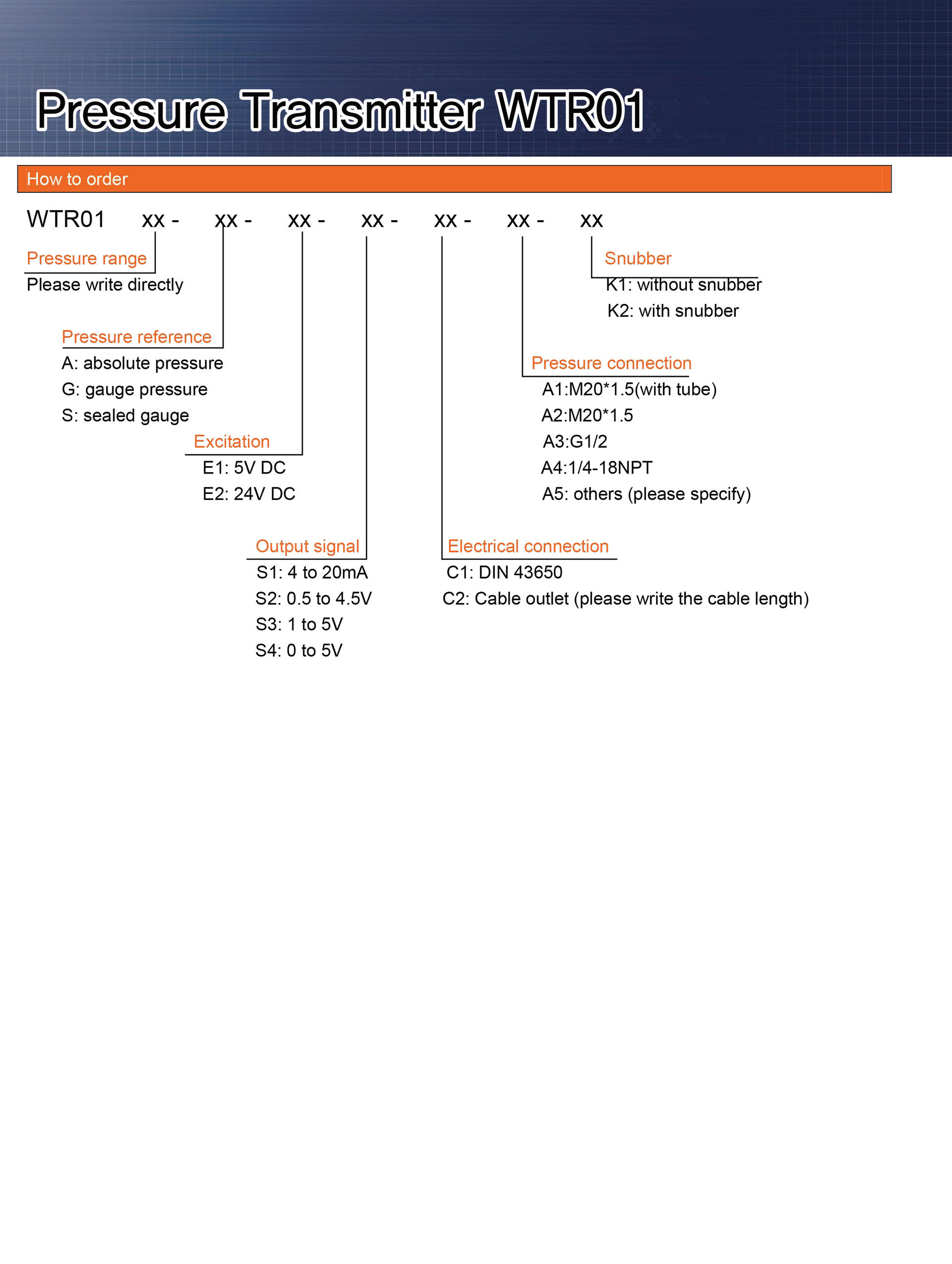

●WTR01-0.1Mpa-G-E2-S1-P2-K (DME8113)

●WTR01-0.25Mpa-G-E2-S1-P2-K (DME8114)

●WTR01-1Mpa-G-E2-S1-C1-A4-K2 (DME6943)

●WTR01-1.6Mpa-G-E2-S1-C1-A4-K2 (DME6944) (Change csq2775)

●WTR01-2.5Mpa-G-E2-S1-C1-A4-K2 (DME7107)

●WTR01-4Mpa-G-E2-S1-C1-A4-K2 (DME6945)

●WTR01-6MpaG-E2-S1-C1-A4-K2 (DME7108)

●WTR01-10Mpa-G-E2-S1-C1-A4-K2 (DME7109)

●WTR01-16Mpa-G-E2-S1-C1-A4-K2 (DME7112) (Change csq2780)

●WTR01-1Mpa-G-E2-S1-C1-A4-K2 (DME6943)

●WTR01-25Mpa-G-E2-S1-C1-A4-K2 (DME6946)

●WTR01-40Mpa-G-E2-S1-C1-A4-K2 (DME7111) (Change csq2782)

●WTR01-60Mpa-G-E2-S1-C1-A4-K2 (DME6947)

●WTR01-100Mpa-G-E2-S1-C1-A4-K2 (DME7110)

●WTR01 (TXYS) vacuum Pressure transmitter (DIN43650A)

●WTR01-(-1~1bar)-G-E2-S1-C1-A4-K2 (DME9560) (vacuum)

●WTR01-(0~-1bar)-G-E2-S1-C1-A4-K2 (DME6734) (vacuum)

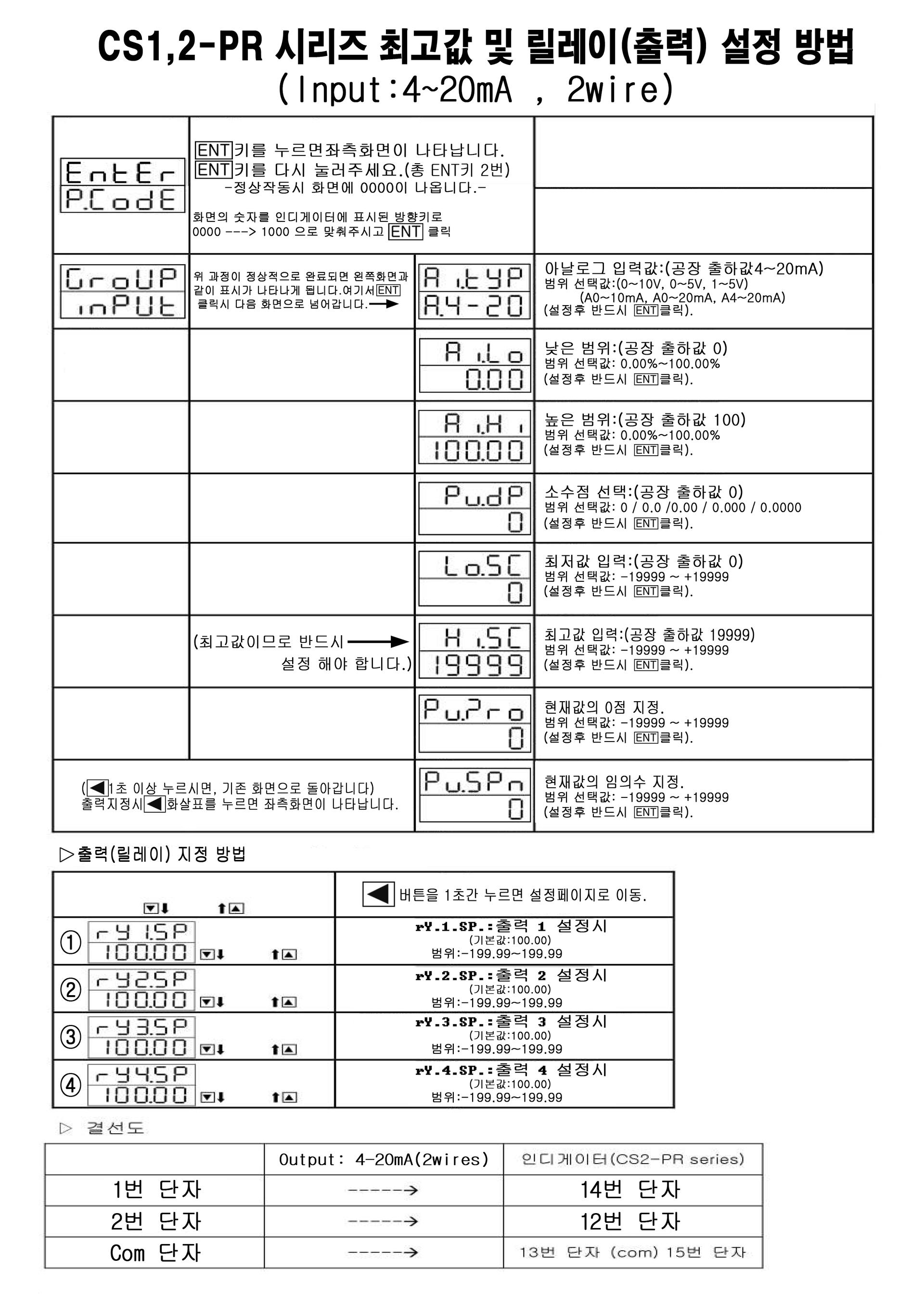

● WTR01 (CS1-PR 인디게이터 결선도) (4-20mA) (0-10V) (2wire or 3wire)
