●WT2310B●WT2310BS●3/2way High Pressure Solenoid Valve●3/2way High temperature Steam Valve)●고압 솔레노이드 밸브●3/2way 고온 솔레노이드 밸브●3/2way 고온 솔 밸브●고압 솔레노이드 솔 밸브●고온 고압 솔레노이드 밸브●medium=only air●(35bar)●(WEITAI)

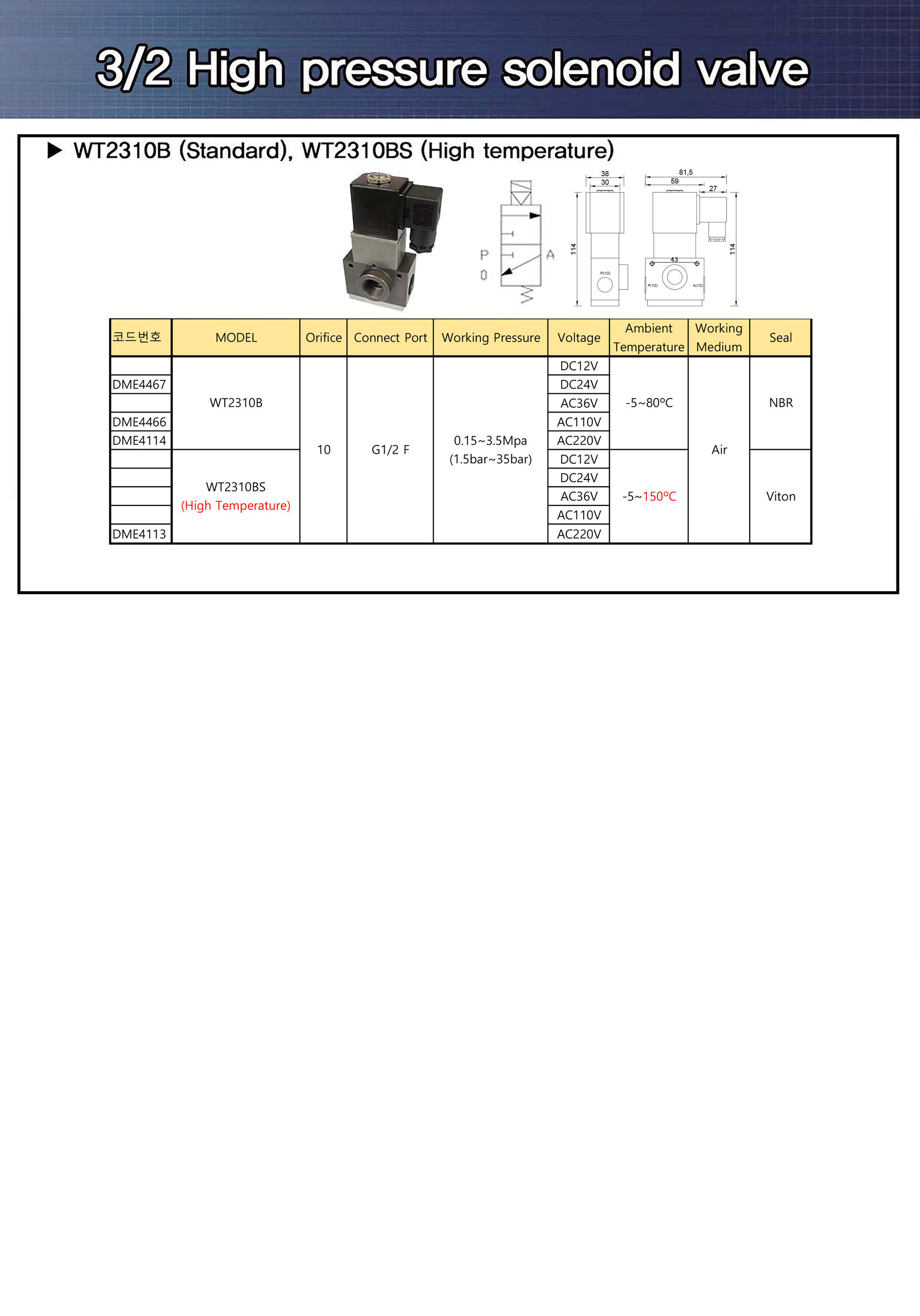

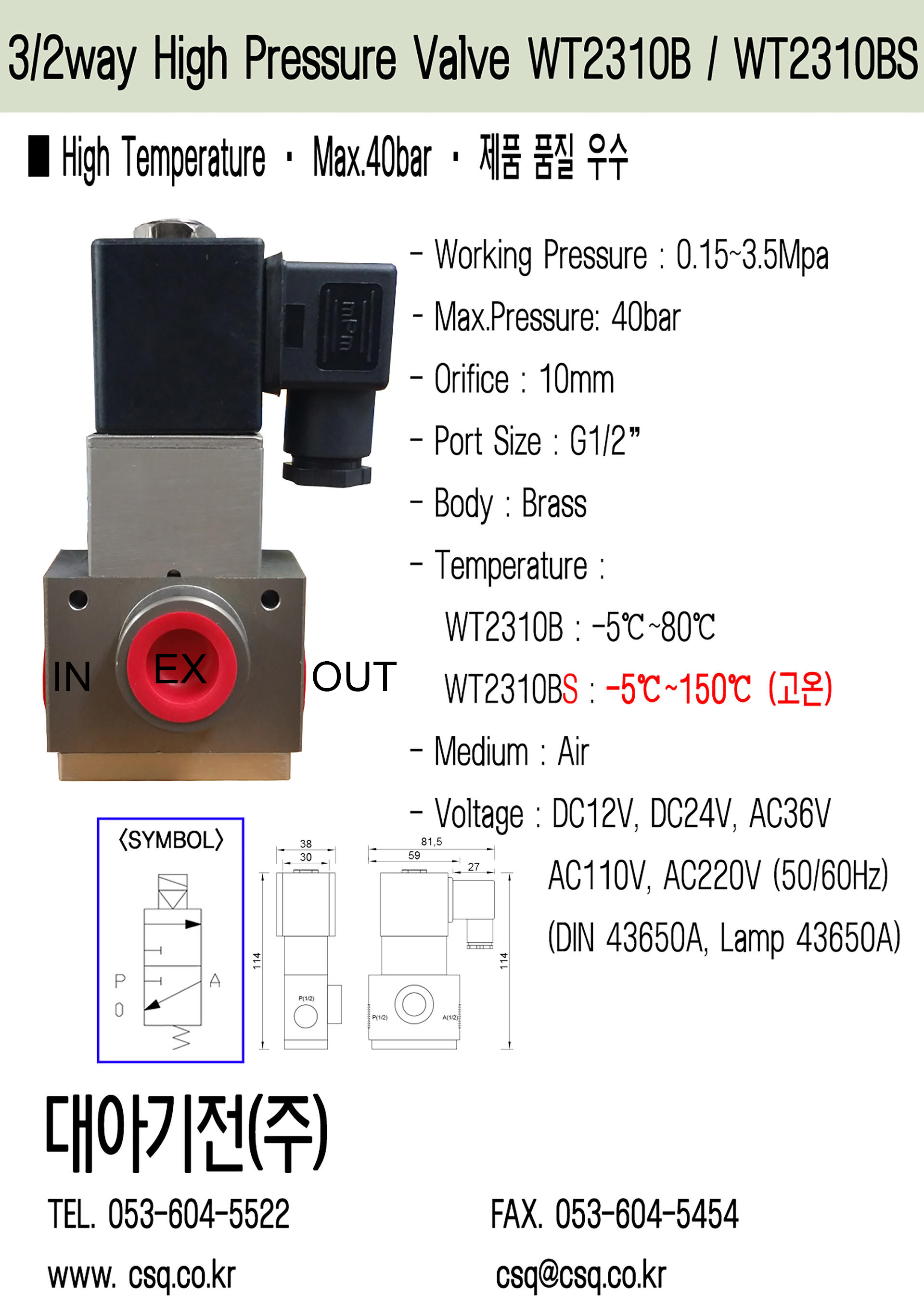

WT2310B & WT2310BS 홍보자료 WT2310 카탈로그

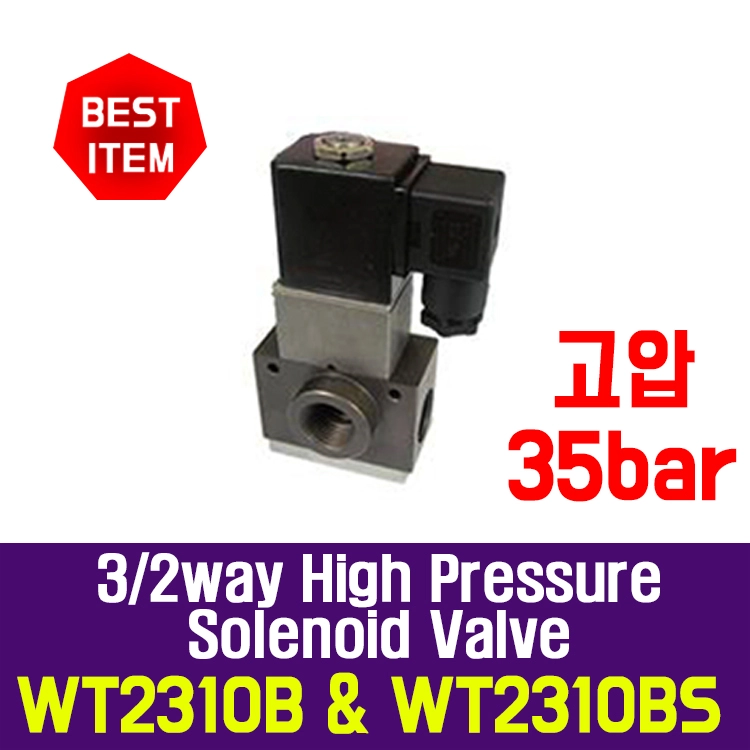

●(3/2way,DIN) High Pressure Solenoid Valve

(Temp=-5~80C) (seal=NBR) (medium=air) (pressure=(0.15~35bar)

●WT2310B-15-(35bar)-(bore=10mm)-2D-AC220V (G1/2 F) (DME4114)

●WT2310B-15-(35bar)-(bore=10mm)-1D-AC110V (G1/2 F) (DME4466)

●WT2310B-15-(35bar)-(bore=10mm)-8D-DC24V (G1/2 F) (DME4467)

●(3/2way DIN) High Pressure Solenoid Valve

(Temp=-5~150C) (seal=viton) (medium=air) (pressure=0.15~35bar)

●WT2310BS-15-(35bar)-(bore=10mm)-2D-AC220V (G1/2 F) (DME4113)

●SB428 (0210B) (적용코일) (2019-09-17일 확인)

●SB025 (적용코일/사용안됨 확인 필요)
