SB115-08-(XY11)●SB11508-XY11●2/2way NC Time Control Drain Valve●RFS Automatic Drain Valve●RFS time control drain valve●RFS 스텐인레스 오토 드레인 밸브●RFS 자동 드레인 밸브●타임드레인 밸브●RFS 타이마 드레인 밸브●(G1/4 F)●(0~8bar)●(RFS)

SB 115-08-XY11 코드번호  SB 115-08-XY11 사용예

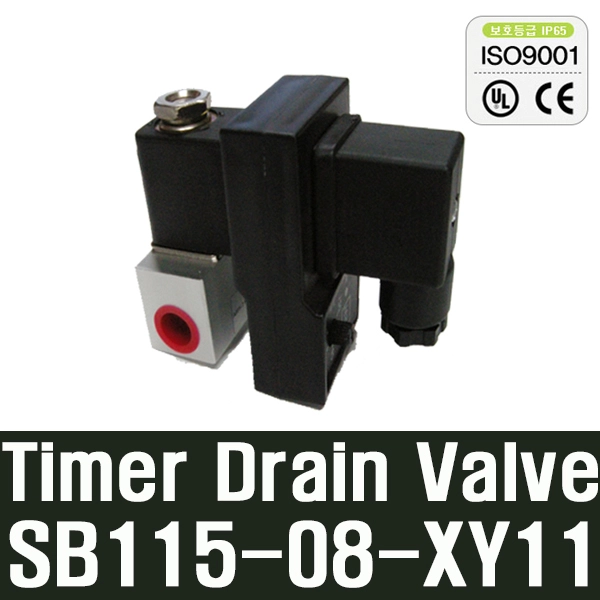

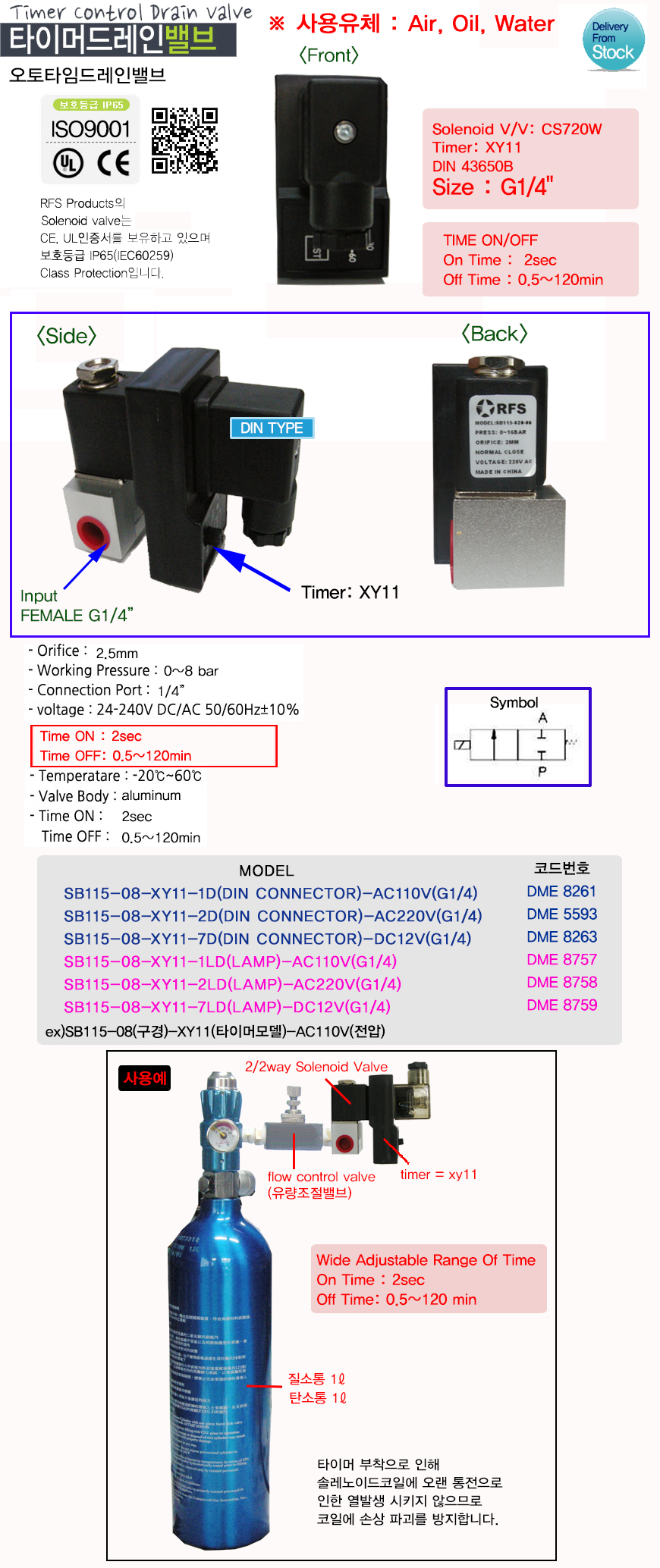

●(2/2way, NC) Aluminium Time Control Drain Valve

(With Timer=XY11)

(pressure=0~8bar) (seal=NBR) (body=Aluminium)

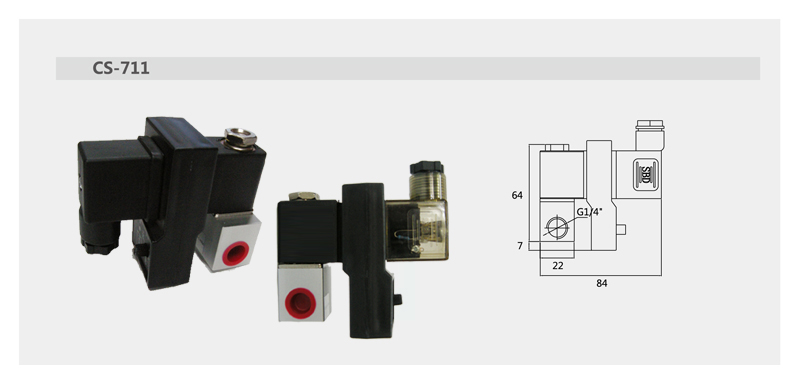

(orifice=2.5mm) (CS711 same)

●SB115-08-(XY11)-2LD-AC220V (G1/4 F) (DME8758)

●SB115-08-(XY11)-8LD-DC24V (G1/4 F) (DME8760)

●SB115-08-(XY11)-8D-DC24V (G1/4 F) (DME8262)

●SB115-08-(XY11)-7LD-DC12V (G1/4 F) (DME8759)

●SB115-08-(XY11)-7D-DC12V (G1/4 F) (DME8263)

●SB115-08-(XY11)-1LD-AC110V (G1/4 F) (DME8757)

●SB115-08-(XY11)-1D-AC110V (G1/4 F) (DME8261)

●(2/2way, NC) Aluminium Time Control Drain Valve

(With Timer=XY11)

(pressure=0~10bar) (seal=NBR) (body=Aluminium)

(orifice=2mm) (CS711 same)

●SB115-08-(XY11)-(10bar)-2D-AC220V (G1/4 F) (DME5593)

●(Only, Timer, XY-11) (connectors DIN43650B)

●XY-11 (Power=24~240V AC/DC) (50~60Hz) (DME2045)

(On Time=2sec) (Off Time=0.5~120min)
