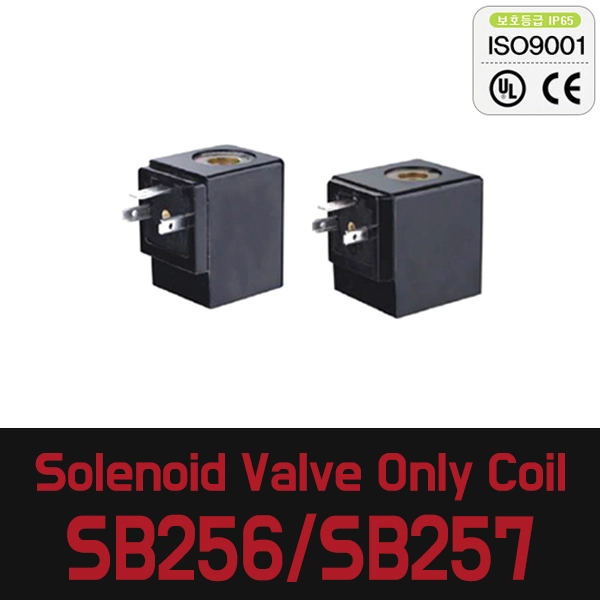

(UL인증)SB256(DIN43650A)●SB257(DIN43650A)●Solenoid Valve,Only Coil●Only Coil,솔레노이드 밸브●(for PU220,PU225,CS720W,CS728A,RHP300,HP350,VT312,A5240,YCXF,SLZ1DF02)●(RFS)

SB256 & SB257 카탈로그 SB256 & SB257 코드번호

SB256 UL인증서

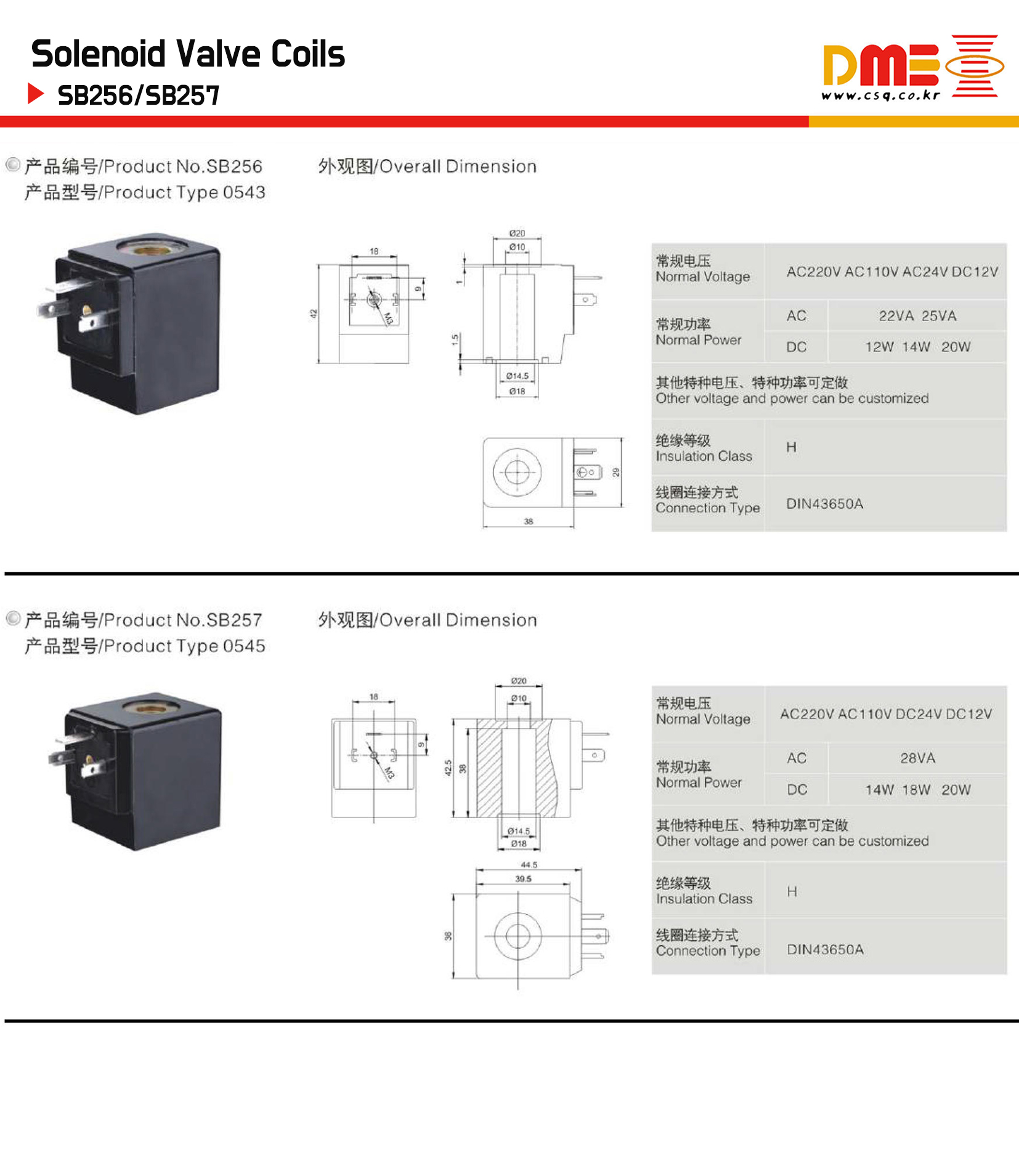

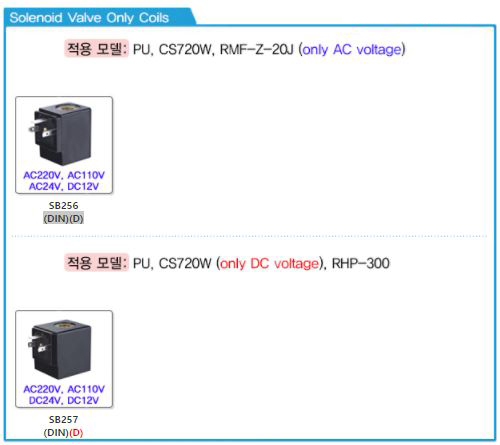

●(AC Only Coil, SB256 AC) (Solenoid Valve DIN43650A)

(bottom dai=14.5mm, 18mm) (top dai=10mm, 20mm ) (height=42mm)

(for PU220AC, PU225 AC, CS720W AC, CS728A AC)

●SB256-AC110V (DIN43650A) (DME4520)

●(only UL인증) SB256-AC220V (DIN43650A) (DME3694)

●SB256-AC12V (DIN43650A) (csq1661)

●SB256-AC24V (DIN43650A) (csq1662)

●SB256-AC380V (DIN43650A) (DME8415)

●(AC Only Coil, SB257 AC) (Solenoid Valve DIN43650A)

(bottom dai=14.5mm, 18mm) (top dai=10mm, 20mm ) (height=42.5mm)

(for only RHP300 AC, HP350 AC, VT312 AC, A5240 AC, YCXF AC)

●SB257-AC220V (DIN43650A) (csq1320)

●SB257-AC110V (DIN43650A) (DME8671)

●(DC Only Coil, SB257 DC) (Solenoid Valve DIN43650A)

(bottom dai=14.5mm, 18mm) (top dai=10mm, 20mm ) (height=42.5mm)

(for only PU220 DC, PU225 DC, CS720W DC, CS728A DC, YCXF DC)

(for only VT312 DC, RHP300 DC, RHP350 DC, A5240 DC)

●SB257-DC12V (DIN43650A) (DME4521)

●SB257-DC24V( DIN43650A) (DME9585)

●only AC coil UL인증품  (DC coil UL인증품 NO)

SB256-AC220V (DIN43650A) (DME3694)
