ESG Valve 전체 카탈로그 도면파일

RJQ22 도면 PDF RJQ22 도면 DWG

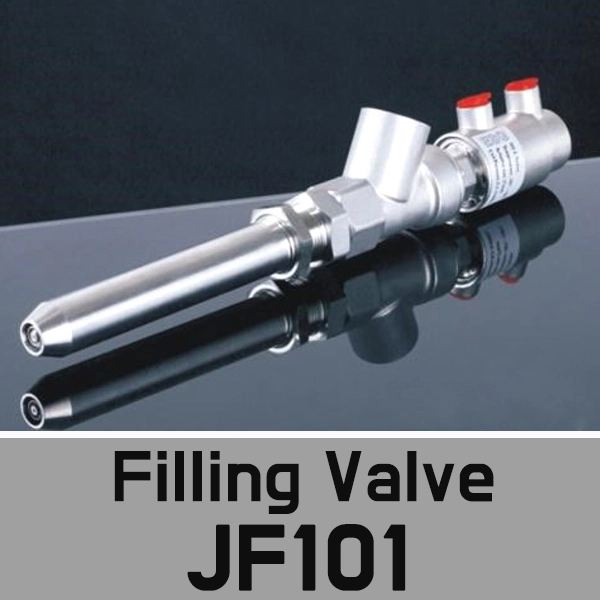

●JF 101 (ESG) ●RJQ22 (RFS) ●JDF1000 (DME)

●Filling valve (medie=샴푸,세제,식수,음료.식품,오일,화학품)

(body=SUS316) (Actuator=SS304) (seal=FTPE)

(temp=-10~120c) (cylinder=27mm)

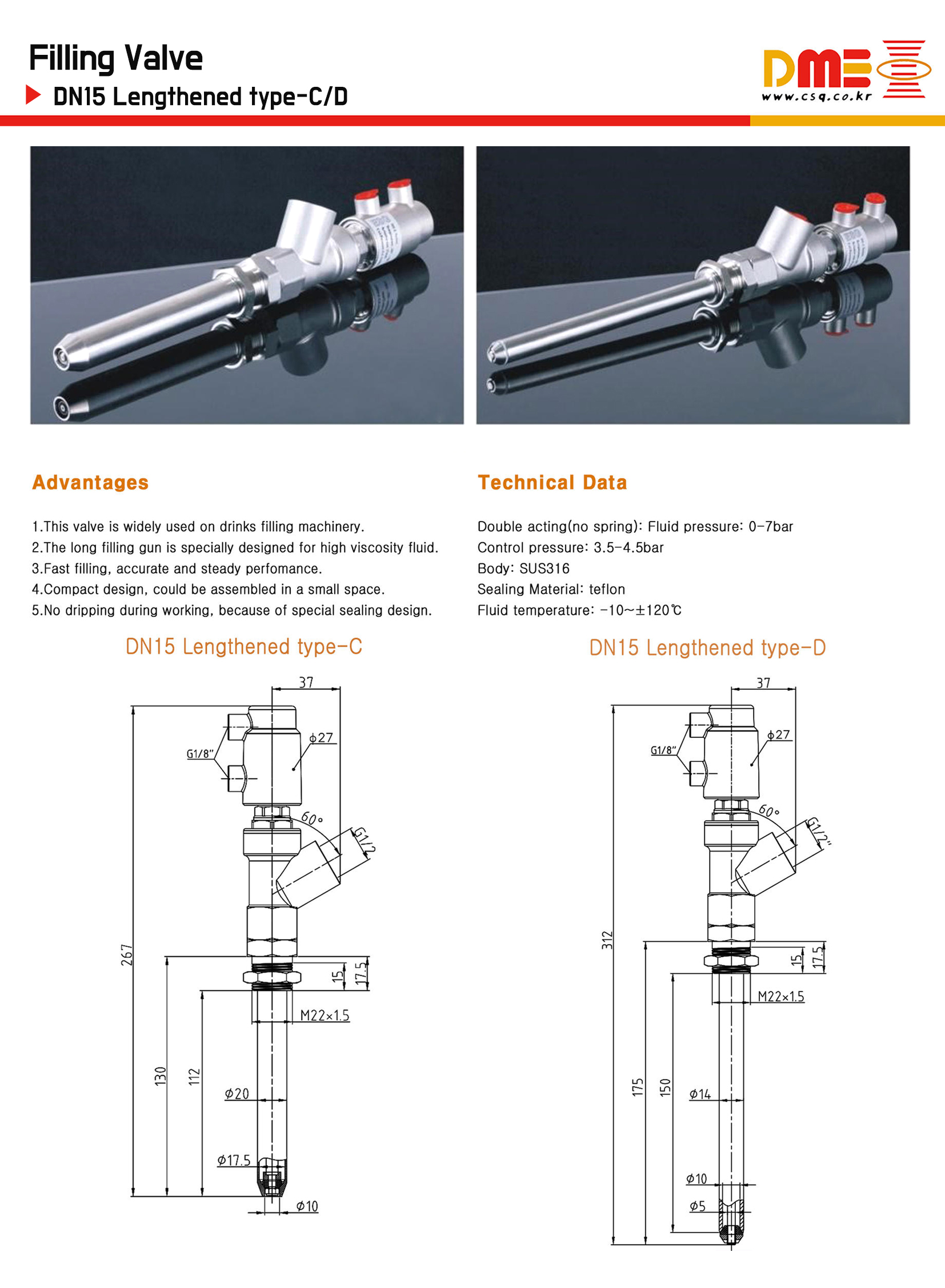

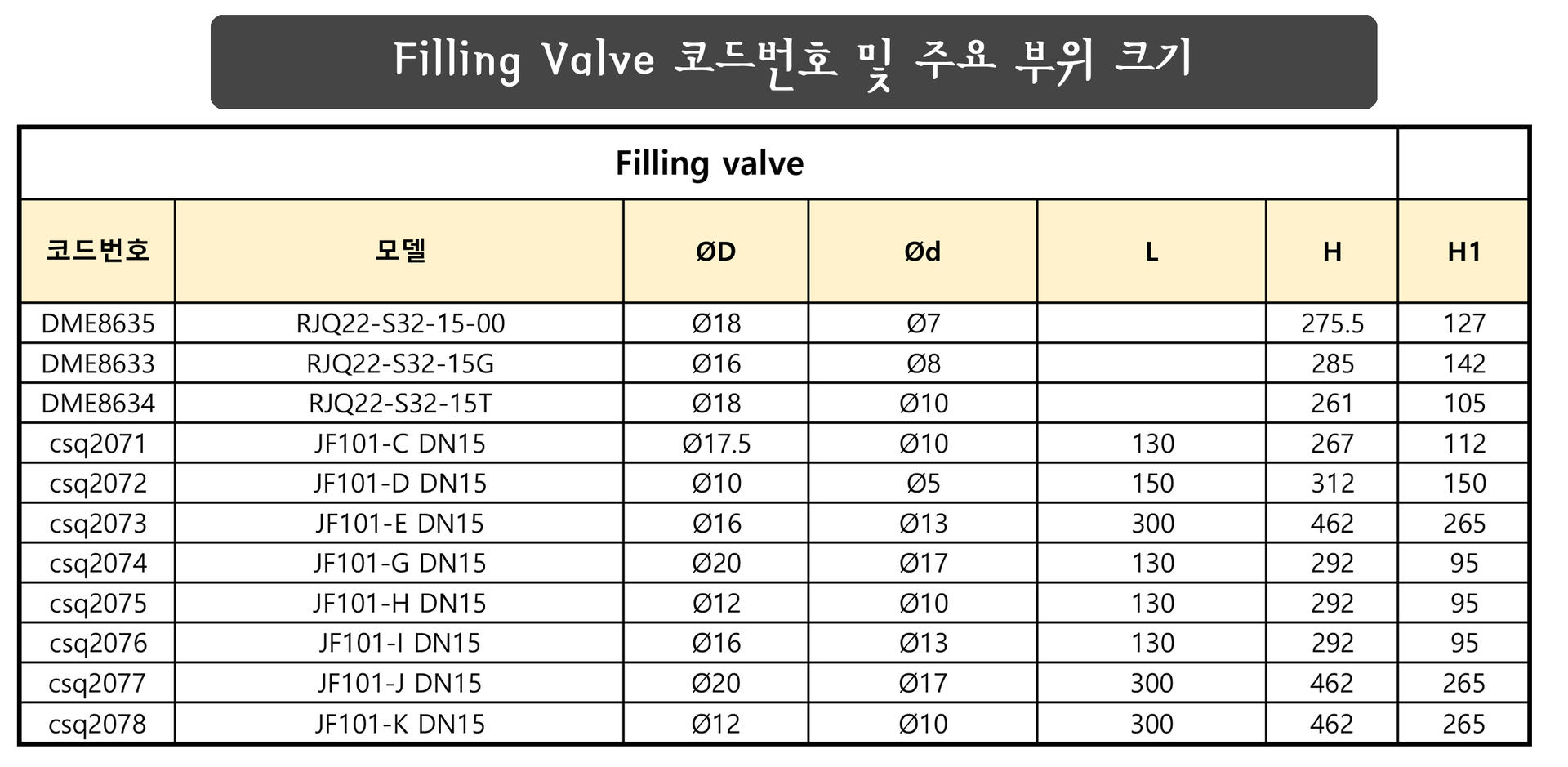

●JF101-C DN15 (csq2071)

(Flouid pressure=0~7bar*G1/2)

(Air control pressure=4bar*G1/8 F)

(length H=267mm)(length H1=112mm)

(dia D=20mm)(dia d=10mm)(M22*1.5)

●JF101-D DN15 (CSQ2072)

(Flouid pressure=0~7bar*G1/2)

(Air control pressure=4bar*G1/8 F)

(length H=312mm) (length H1=150mm)

(dia D=14mm) (dia d=5mm)(M22*1.5)

●Filling valve (medie=샴푸,세제,식수,음료.식품,오일,화학품)

(body=SUS316) (Actuator=SS304) (seal=FTPE)

(temp=-10~120c) (cylinder=32mm)

●JF101-E DN15 (csq2073)

(Flouid pressure=0~7bar*G1/2 F)

(Air control pressure=4bar*G1/8 F)

(length H=462mm) (length H1=265mm)

(dia D=16mm) (dia d=3mm) (M22*1.5)

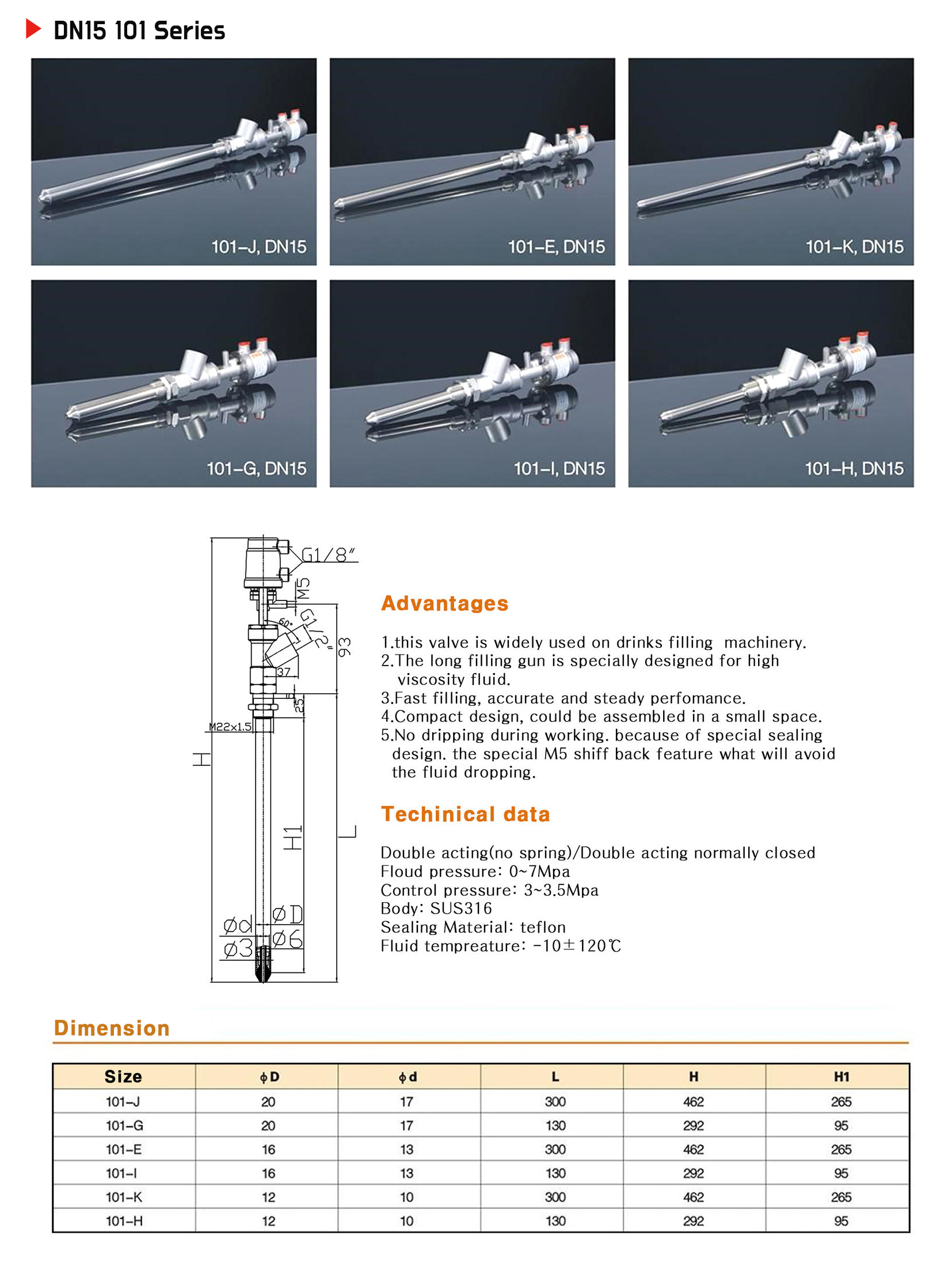

●JF101-G DN15 (CSQ2074)

(Flouid pressure=0~7bar*G1/2 F)

(Air control pressure=4bar*G1/8 F)

(length H=202mm) (length H1=95mm)

(dia D=20mm) (dia d=3mm) (M22*1.5)

●JF101-H DN15 (csq2075)

(Flouid pressure=0~7bar*G1/2 F)

(Air control pressure=4bar*G1/8 F)

(length H=292mm) (length H1=95mm)

(dia D=12mm) (dia d=3mm) (M22*1.5)

●JF101-I DN15 (csq2076)

(Flouid pressure=0~7bar*G1/2 F)

(Air control pressure=4bar*G1/8 F)

(length H=292mm) (length H1=95mm)

(dia D=16mm) (dia d=3mm) (M22*1.5)

●JF101-J DN15 (csq2077)

(Flouid pressure=0~7bar*G1/2 F)

(Air control pressure=4bar*G1/8 F)

(length H=462mm) (length H1=265mm)

(dia D=20mm) (dia d=3mm) (M22*1.5)

●JF101-K DN15 (csq2078)

(Flouid pressure=0~7bar*G1/2 F)

(Air control pressure=4bar*G1/8 F)

(length H=462mm) (length H1=265mm)

(dia D=12mm) (dia d=3mm) (M22*1.5)

●Filling valve (medie=샴푸,세제,식수,음료.식품,오일,화학품)(RFS)

(body=SUS316) (Actuator=SS304) (seal=FTPE) (temp=-10~120c)

●RJQ22-S32-15-00 (DME8635)

(Flouid pressure=0~7bar*G1/2)

(Air control pressure=4bar*G1/8)

(length H=275) (length H1=127mm)

(dia D=18mm) (dia d=7mm) (M24*1.5)

●RJQ22-S32-15G (DME8633)

(Flouid pressure=0~7bar*G1/2)

(Air control pressure=4bar*G1/8)

(length H=285) (length H1=142mm)

(dia D=16mm) (dia d=8mm) (M24mm)

●RJQ22-S32-15T (DME8634)

(Flouid pressure=0~7bar*G1/2)

(Air control pressure=*4bar*G1/8)

(length H=261mm) (length H1=105mm)

(dia D=18mm) (dia d=10mm) (M24*1.5)
