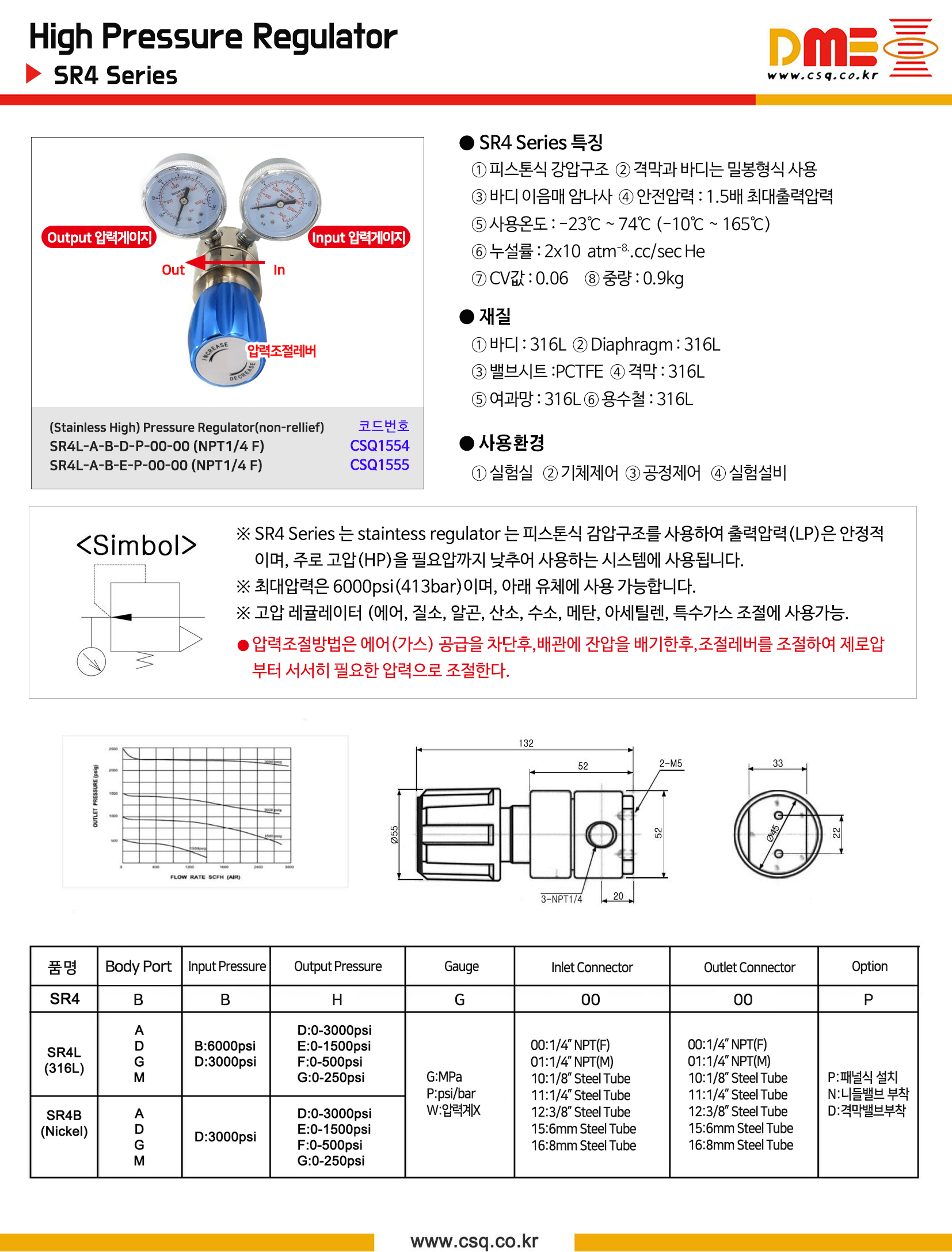

SR4L 카탈로그

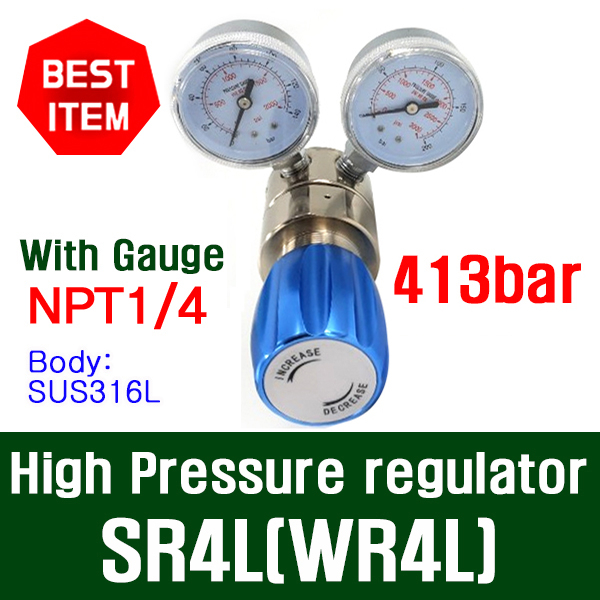

●(Stainless) High pressure regulator (413bar) (non-rellief)

●SR4L-A-B-D-P-00-00 (NPT1/4 F) (csq1554)

(input pressure=413bar) (outpu pressure=0~206bar)

●SR4L-A-B-E-P-00-00 (NPT1/4 F) (csq1555)

(input pressure=413bar) (outpu pressure=0~103bar)

●SR4L-A-B-F-P-00-00 (NPT1/4 F)

(input pressure=413bar) (outpu pressure=0~35bar)

●SR4L-A-B-G-P-00-00 (NPT1/4 F)

(input pressure=413bar) (outpu pressure=0~12bar)

●(Stainless) High pressure regulator (204bar) (non-rellief)

●SR4L-D-B-D-P-00-00 (NPT1/4 F)

(input pressure=204bar) (outpu pressure=0~204bar)

●SR4L-D-B-E-P-00-00 (NPT1/4 F)

(input pressure=204bar) (outpu pressure=0~103bar)

●SR4L-D-B-F-P-00-00 (NPT1/4 F)

(input pressure=204bar) (outpu pressure=0~35bar)

●SR4L-D-B-G-P-00-00 (NPT1/4 F)

(input pressure=204bar) (outpu pressure=0~17bar)

●(only) bottom Pressure Gauge(SUS)

●(for SR4L) (YB50LA-1/4NPT=6000psi/413bar) (csq4542)

●(for SR4L) (YB50LA-1/4NPT=3000psi/204bar) (csq4543)

●(for SR4L) (YB50LA-1/4NPT=1500psi/103bar) (csq4544)

●(for SR4B) (YB50LA-1/4NPT 500psi/35bar) (csq4546)

●(for SR4B) (YB50LA-1/4NPT 250psi/17bar) (csq4545)

●압력조절방법은 에어(가스) 공급을 차단후,배관에 잔압을 배기한후,조절레버를 조절하여 제로압 부터 서서히 필요한 압력 으로 조절한다.
