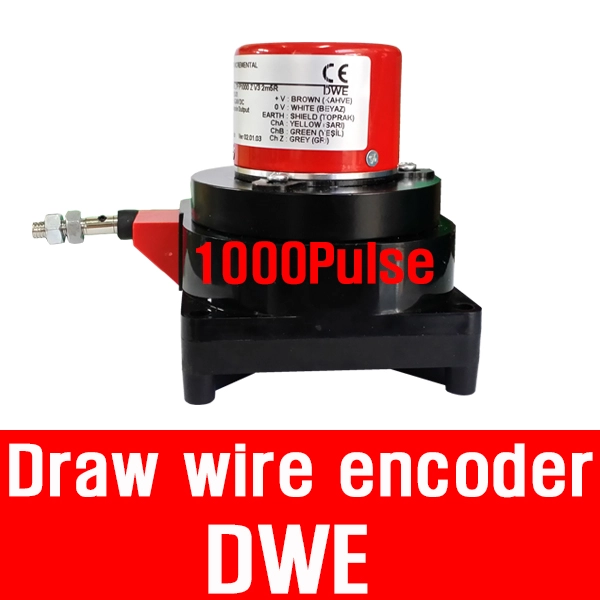

(1000Pulse)(Resolution=0.2mm/puls)●DWE-1000●DWE-1500●DWE-2000●DWE-3000●DWE-3500●OPKON Draw wire encoder●OPKON Draw wire incrementar encoder●오콘 와이어 엔코더●OPKON 와이어 엔코더●(IP54)●(OPKON)

전체 카탈로그 DWE 카탈로그

CS2 MC & DWE 매뉴얼

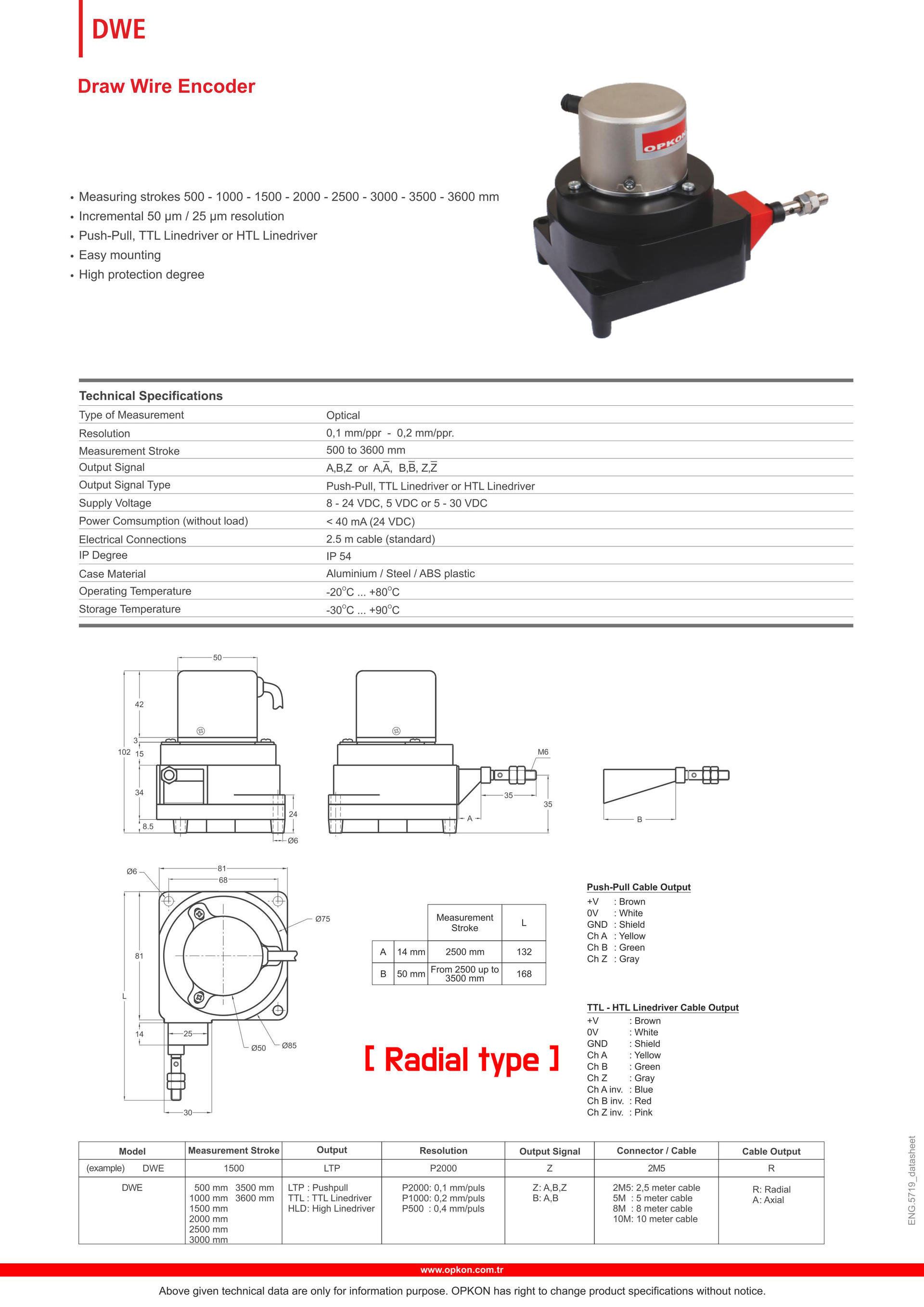

●DWE (Draw wire incrementar encoder) (IP54)

●stroke=(500mm~3500mm)

●out put=(LPT=Pushpul) (TTL=TTL Linedriver) (HTL=High Linedriver)

●output signal=(A B Z) (A A) (B B) (Z Z)

●supply voltage=(LTP/TP=8-24VDC) (TTL /LD/TT= 5VDC )

 (HTL/HLD= 5-24VDC or 5~30VDC )

●(Radial type) Draw wire  incrementar encoder (LPT)

●DWE-500-LTP-P1000-Z-V3-2M5-R (6wire) (csq1367)

●DWE-1000-LTP-P1000-Z-V3-2M5-R (6wire) (csq1368)

●DWE-1500-LTP-P1000-Z-V3-2M5-R (6wire) (csq1369)

●DWE-2000-LTP-P1000-Z-V3-2M5-R (6wire) (csq1370)

●DWE-2500-LTP-P1000-Z-V3-2M5-R (6wire) (csq1371)

●DWE-3000-LTP-P1000-Z-V3-2M5-R (6wire) (csq1372)

●DWE-3500-LTP-P1000-Z-V3-2M5-R (6wire) (csq1373)

(supply voltage=5~24VDC) (Resolution 1,000=0.2mm/puls)

(cable=2.5m) (Output=LTP/pushpull) (Output signal=A,B,Z)

●(Radial type) Draw wire  incrementar encoder (HTL)

●DWE-500-HTL-P1000-Z-V3-2M5-R (9wire)

●DWE-1000-HTL-P1000-Z-V3-2M5-R (9wire)

●DWE-1500-HTL-P1000-Z-V3-2M5-R (9wire)

●DWE-2000-HTL-P1000-Z-V3-2M5-R (9wire)

●DWE-2500-HTL-P1000-Z-V3-2M5-R (9wire)

●DWE-3000-HTL-P1000-Z-V3-2M5-R (9wire)

●DWE-3500-HTL-P1000-Z-V3-2M5-R (9wire)

(supply voltage=5~24VDC) (Resolution 1,000=0.2mm/puls)

(cable=2.5m) (Output=HTL/High Linedriverl) (Output signal=A,B,Z)

● DWE  (CS2-MC 인디게이터 결선도) (totempole) (5wire)

● DWE  (CS1-MC 인디게이터 결선도) (totempole) (5wire)

●펄스길이측정 ●Hydraulic presses ●Cnc press brakes

●씨엔씨 프레스 브레이크

●Pipe bending machines ●파이브 밴딩 머신 ●Sheet metal folding machines

●시트 메탈 폴딩 머신 ●가변저항 포텐션미터 ●변위센서

●CHTL=HLD (High Lindriver) (supply voltage=5~24VDC)

●HTL=HLD (High Lindriver) (supply voltage=5~24VDC)

●TP=LTP (Pushpull) (supply voltage=8~24VDC)

●TT=TTL=LD (TTL  Lindriver) (supply voltage=5VDC)

●V3=(supply voltage=5~24VDC) ●V2=(supply voltage=8~24VDC)
