DWP-900●DWP-1800●DWP-3600●OPKON Draw wire Position meter●OPKON 와이어포텐션 메타●오콘 가변저항 포텐션 미터●오콘 저항 변위 센서●오콘 와이어 포텐숀 메타●(stroke=500mm, 900mm,1800mm, 3600mm)●(IP54)●(OPKON)

전체 카탈로그 DWP 카탈로그

CS1,2 PR 4~20mA 결선도  CS1,2 PM 5kΩ & 10kΩ 결선도

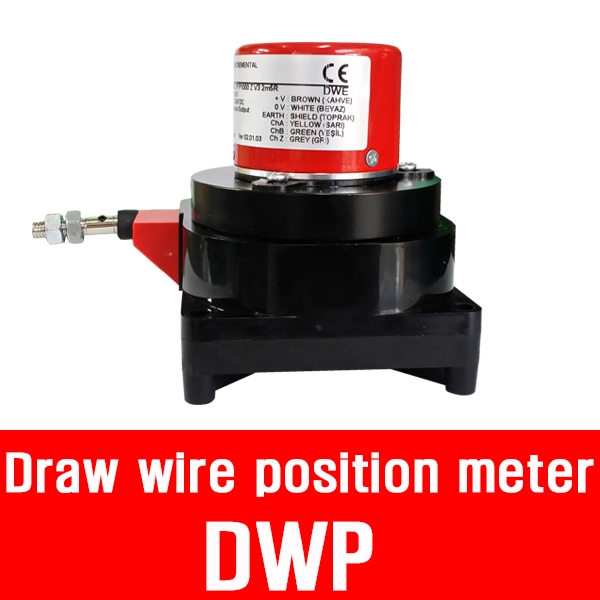

●DWP (Draw wire Position meter) (IP54)

●stroke=(500mm / 900mm /1800mm /3600mm)

●Linearity=(C=0.5%) (old B=0.5%) (D=0.1%)

●output=(5 kohm,10 kohm, 4~20mA, 0~20mA, 0~10V)

●supply voltage=(24VDC)

●(Radial type) Draw wire Position meter (output=10 kohm

●DWP-900-D-10K-2M5 -R( Linearity=0.1%) (DME9694)

●DWP-1800-D-10K-2M5-R (Linearity=0.1%) (DME9695)

●DWP-3600-D-10K-2M5-R (Linearity=0.1%) (CSQ1350)

●(Radial type) Draw wire Position meter (output=5 kohm)

●DWP-900-D-5K-2M5 -R (Linearity=0.1%)

●DWP-1800-D-5K-2M5-R (Linearity=0.1%)

●DWP-3600-D-5K-2M5-R (Linearity=0.1%)

●(Radial type) Draw wire Position meter (output=4~20mA)

●DWP-900-D-14-2M5-R (Linearity=0.1%) (DME9697)

●DWP-1800-D-14-2M5-R (Linearity=0.1%) (CSQ2267)

●DWP-3600-D-14-2M5-R (Linearity=0.1%) (CSQ1349)

●(Radial type) Draw wire Position meter (output=0~10V)

●DWP-900-D-V10-2M5-R (Linearity=0.1%)

●DWP-1800-D-V10-2M5-R (Linearity=0.1%)

●DWP-3600-D-V10-2M5-R (Linearity=0.1%)

●(Axial type) Draw wire Position meter (output=4~20mA)

●DWP-1800-D-I 4-2M5 (Linearity=0.1%) (DME9696)

● DWP (CS2-PM 인디게이터 결선도) (0-10Kohm) (5wire)

● DWP (CS1-PM 인디게이터 결선도) (0-10Kohm) (5wire)

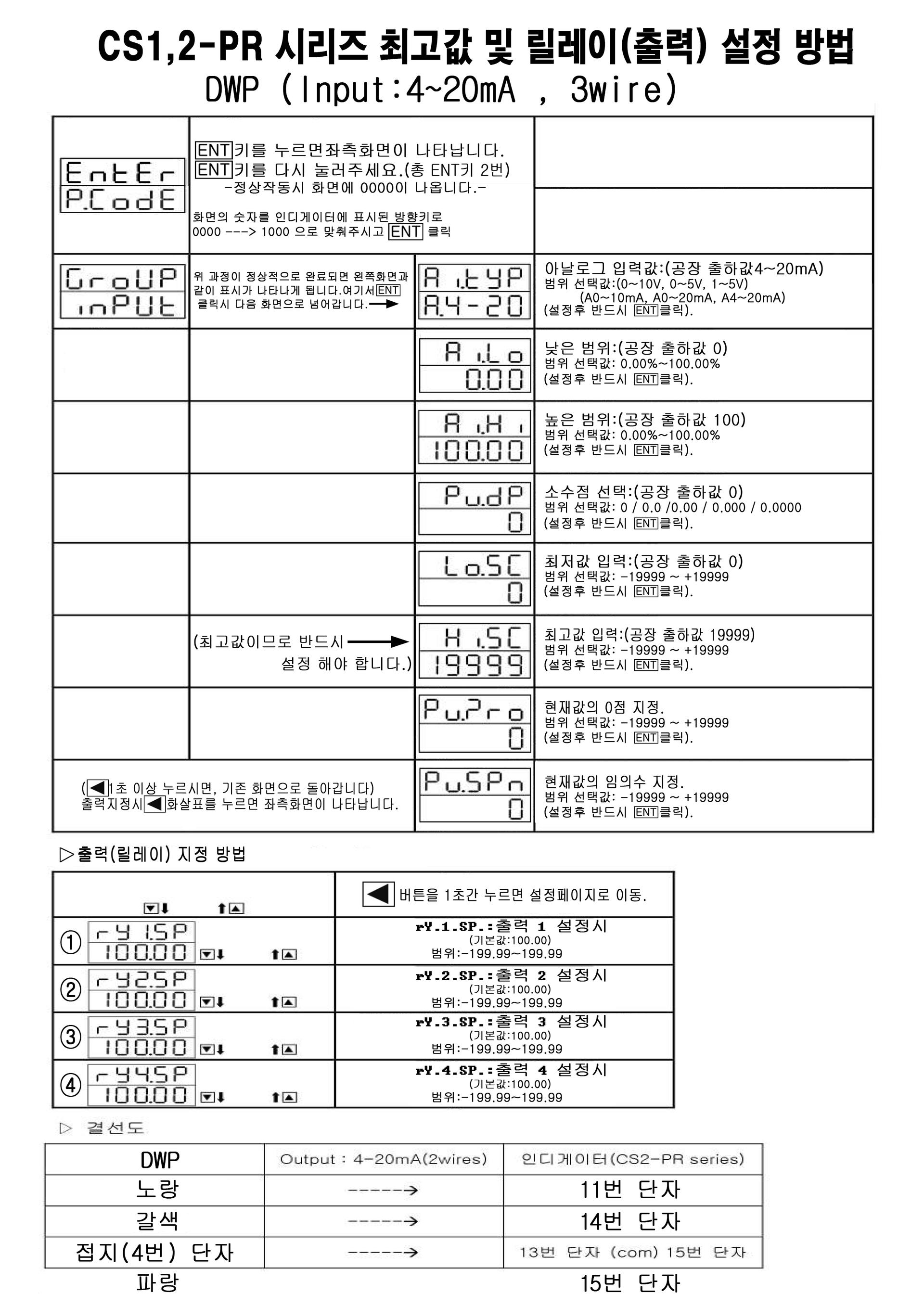

● DWP (CS2-PR 인디게이터 결선도 )(4-20mA) (0-10V) (2wire or 3wire)

● DWP (CS1-PR 인디게이터 결선도) (4-20mA) (0-10V) (2wire or 3wire)

●Position meter & Hydraulic presses ●Cnc press brakes

●씨엔씨 프레스 브레이크 ●PIPE bending machines ●파이프 밴딩 머신

●Sheet metal folding machines ●시트 메탈 폴딩 머신
