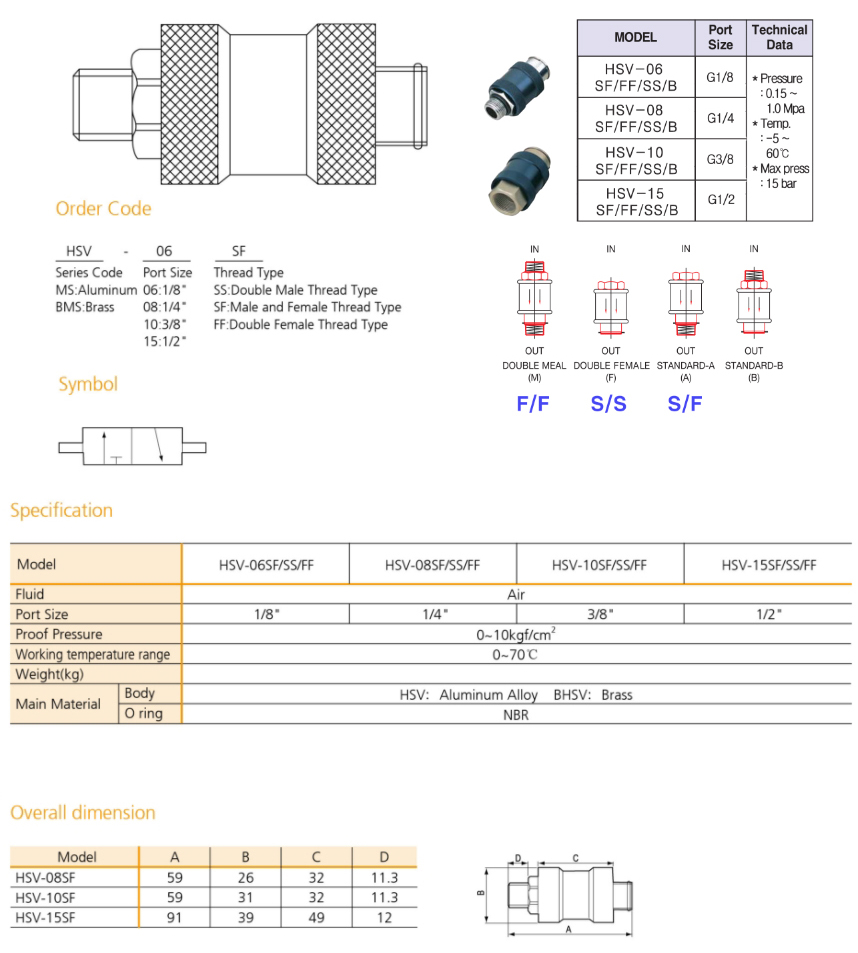

HSV-06SF●HSV-10SF●HSV-15SF●HSV**SF●(HSVxxSF)●(HSV)●3/2way Hand Slide Valve●3/2way 핸드 슬라이드 밸브●(G1/8~G1)●(WEITA, BLCH)

HSV Series 카탈로그

●Hand slide valve (one side male) (one side female) (BLCH)

(pressure=0~10bar)

●HSV-06SF (HSV-11SF) (G1/8 M) (G1/8 F) (DME6863) (DME4376)

●HSV-08SF (HSV-22SF) (G1/4 M) (G1/4 F) (DME6864)

●HSV-10SF (HSV-33SF) (G3/8 M) (G3/8 F) (DME6865) (DME6717)

●HSV-15SF (HSV-44SF) (G1/2 M) (G1/2 F) (DME6866) (DME4379)

●Hand slide valve (one side male) (one side female) (WEITAI)

(pressure=0~10bar)

●W-HSV06SF (G1/8 M) (G1/8 F) (DME4376) (DME6863)

●W-HSV06SF (G1/4 M) (G1/4 F)

●W-HSV10SF (G3/8 M) (G3/8 F) (DME6717) (DME6865)

●W-HSV15SF (G1/2 M) (G1/2 F) (DME4379) (DME6866)

●W-HSV20SF (G3/4 M) (G3/4 F) (DME4380)

●W-HSV20SF (G1 M) (G1 F) (DME4381)

●Hand slide valve (both female) (WEITAI) (pressure=0~10bar)

●W-HSV08FF (G1/4 F) (G1/4 F) (DME4377)

●W-HSV10FF (G3/8 F) (G3/8 F) (DME4378)

●HSV**SF (one side male  one side male type)

●HSV**FF (both female)

●W-HSV**SF (one side male  one side male type)

●W-HSV**FF (both female)
