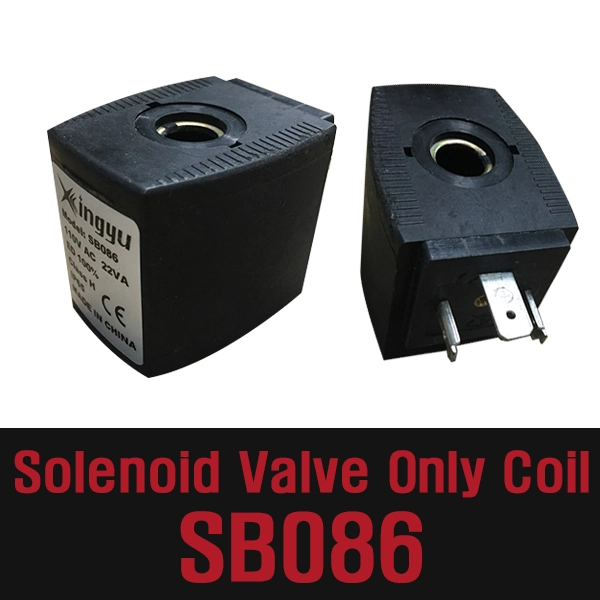

SB086(DIN43650A)●(SB114)●(Only coil)Solenoid Valve●솔레노이드 밸브 코일●(for SB116 new)●(for SB5015 old)( for RV016163-08B,2373008-016,EV310)●(bottom dia=14.5mm,21.5mm)(top dia=10mm,12.5mm )(height=40mm)●(RFS)

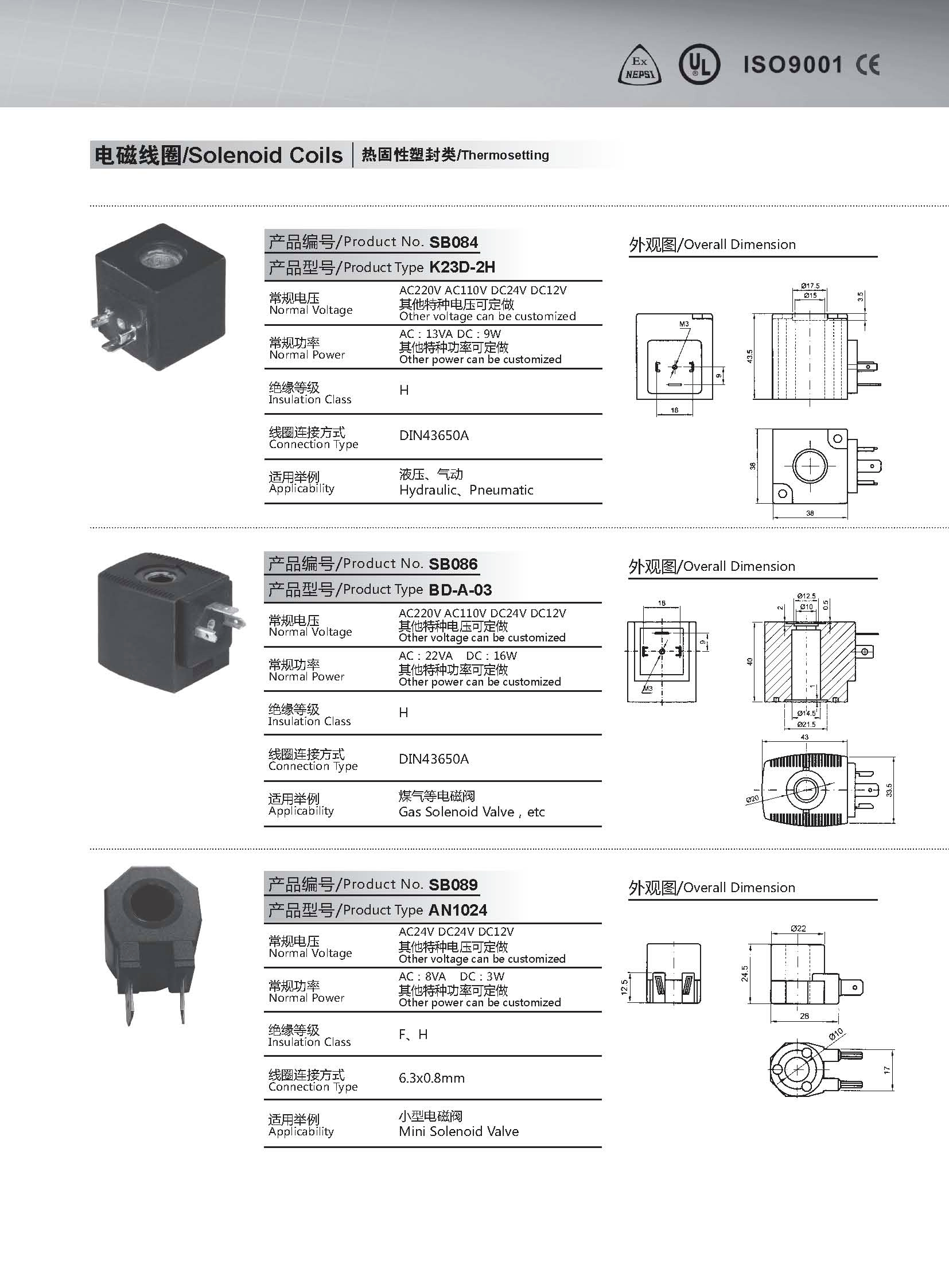

Solenoid Coils 전체카탈로그 SB086 도면

●(Only Coil Solenoid Valve DIN43650A) (1440 coil로 체인지)

(bottom dia=14.5mm, 21.5mm)

(top dia=10mm, 12.5mm) (height=40mm)

(for SB116,old model=SB5015, RV016163-08B, 2373008-016, 144034)

(with out connector)

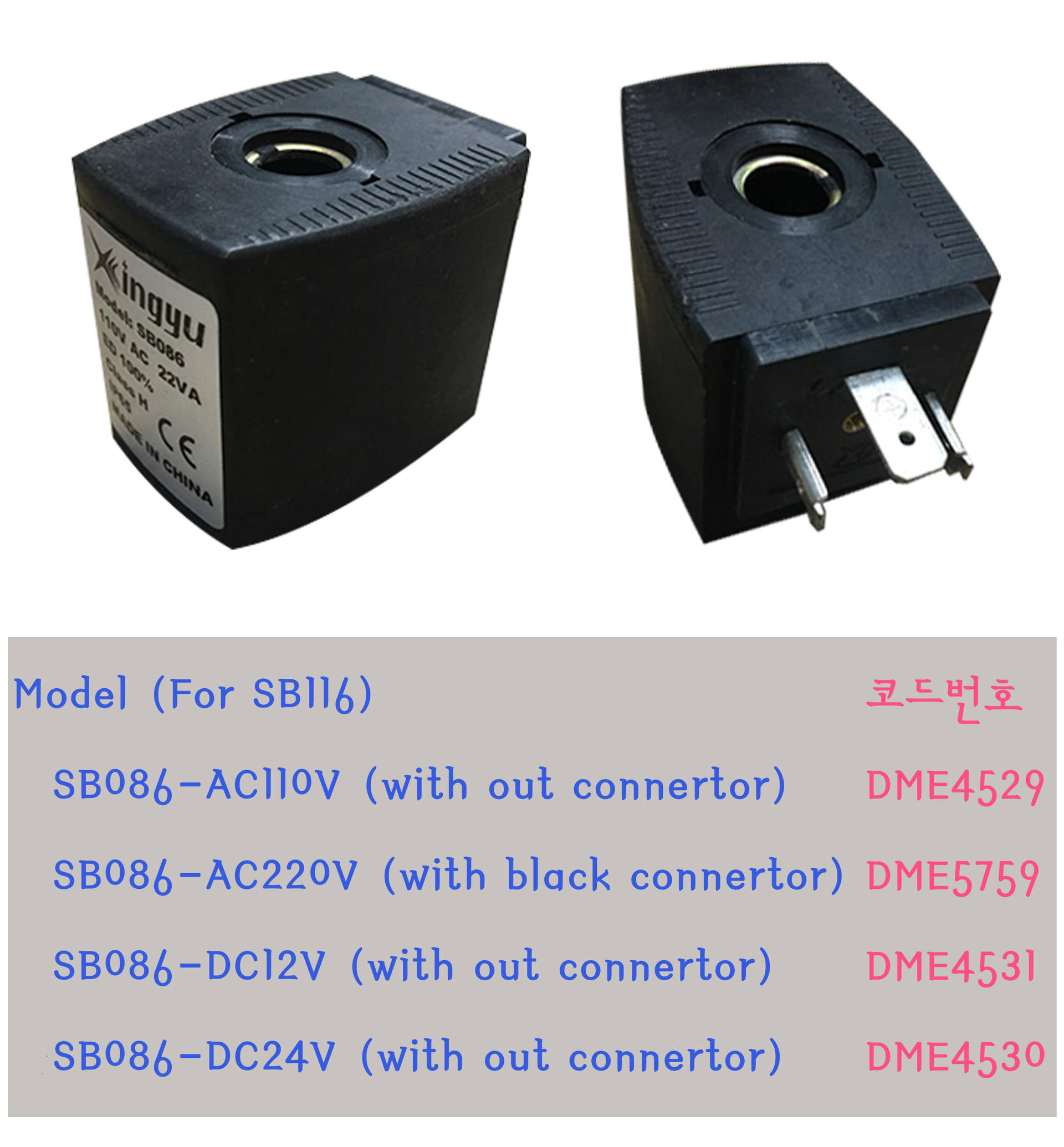

●SB086-AC110V (DIN43650A) (DME4529)

●SB086-AC220V (DIN43650A) (old DME5759 (new CSQ5280)

●SB086-DC12V (DIN43650A) (DME4531)

●SB086-DC24V (DIN43650) (0ld DME4530) (new CSQ5279)

●(AC110V) (AC220V) (DC12V) (DC24V) (DIN type) ( Lamp DIN type)

●1440 Coil (Normally closed )

●1440-DC12V

●1440 -DC24V  (CSQ5279) (oid DME4530)

●1440 -AC110V

●1440 -AC220V (CSQ5280 ) (old DME5759)

●(AC110V) (AC220V) (DC12V) (DC24V) (DIN type) ( Lamp DIN type)
