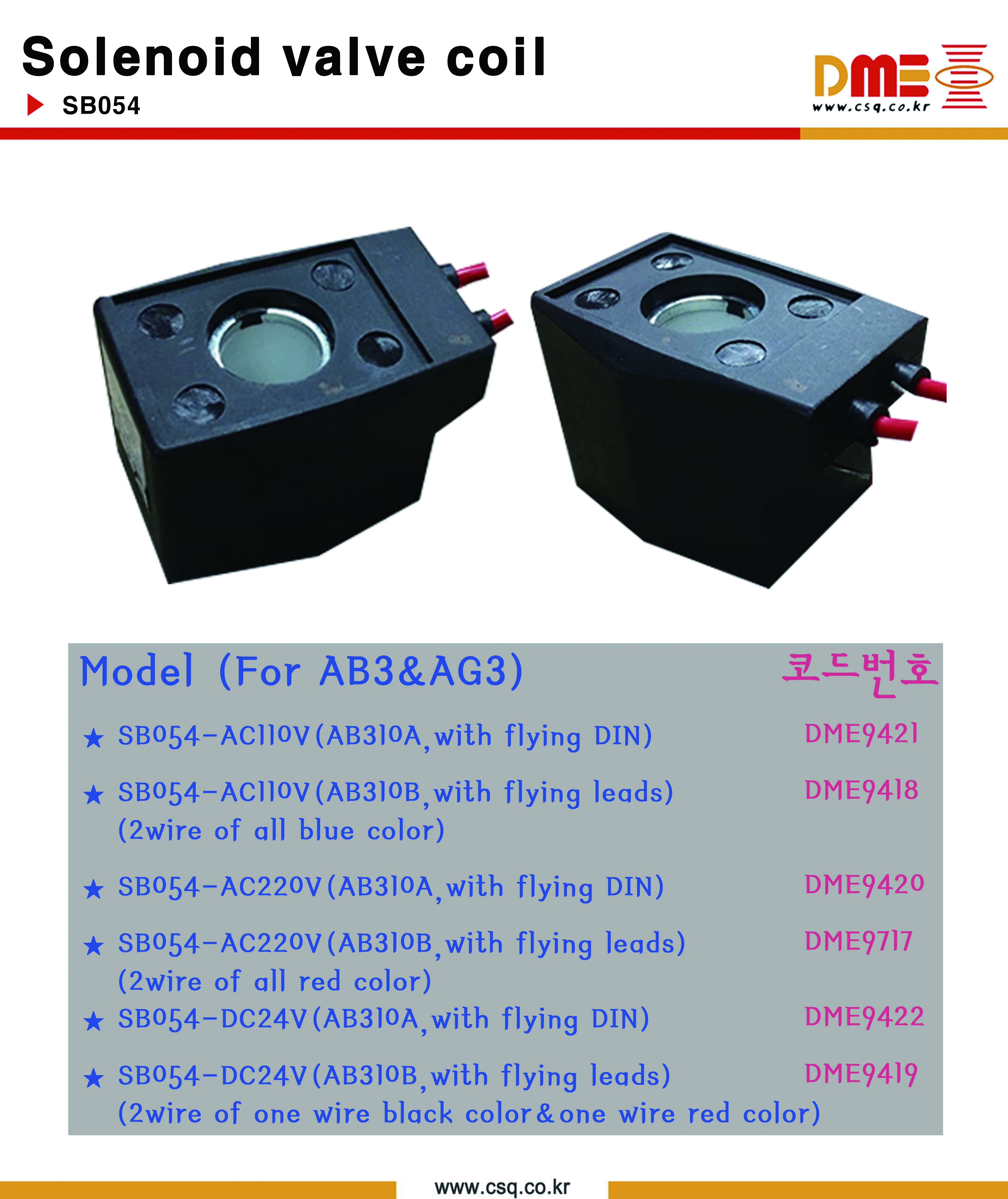

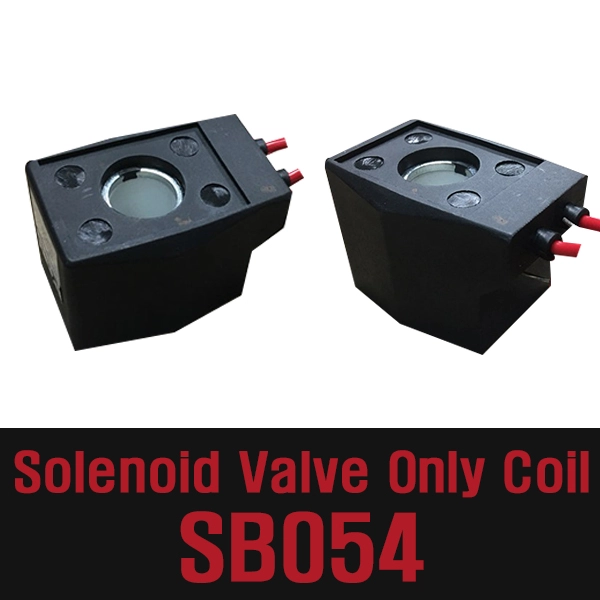

SB054(lead wire)●(SB054, DIN43650A)●Solenoid Valve Only Coil ●솔레노이드밸브코일●(bottom dia=13.5mm)(top dia=15mm,17.5mm )(height=43.5mm)●( AB31)(AG31●)(RFS)

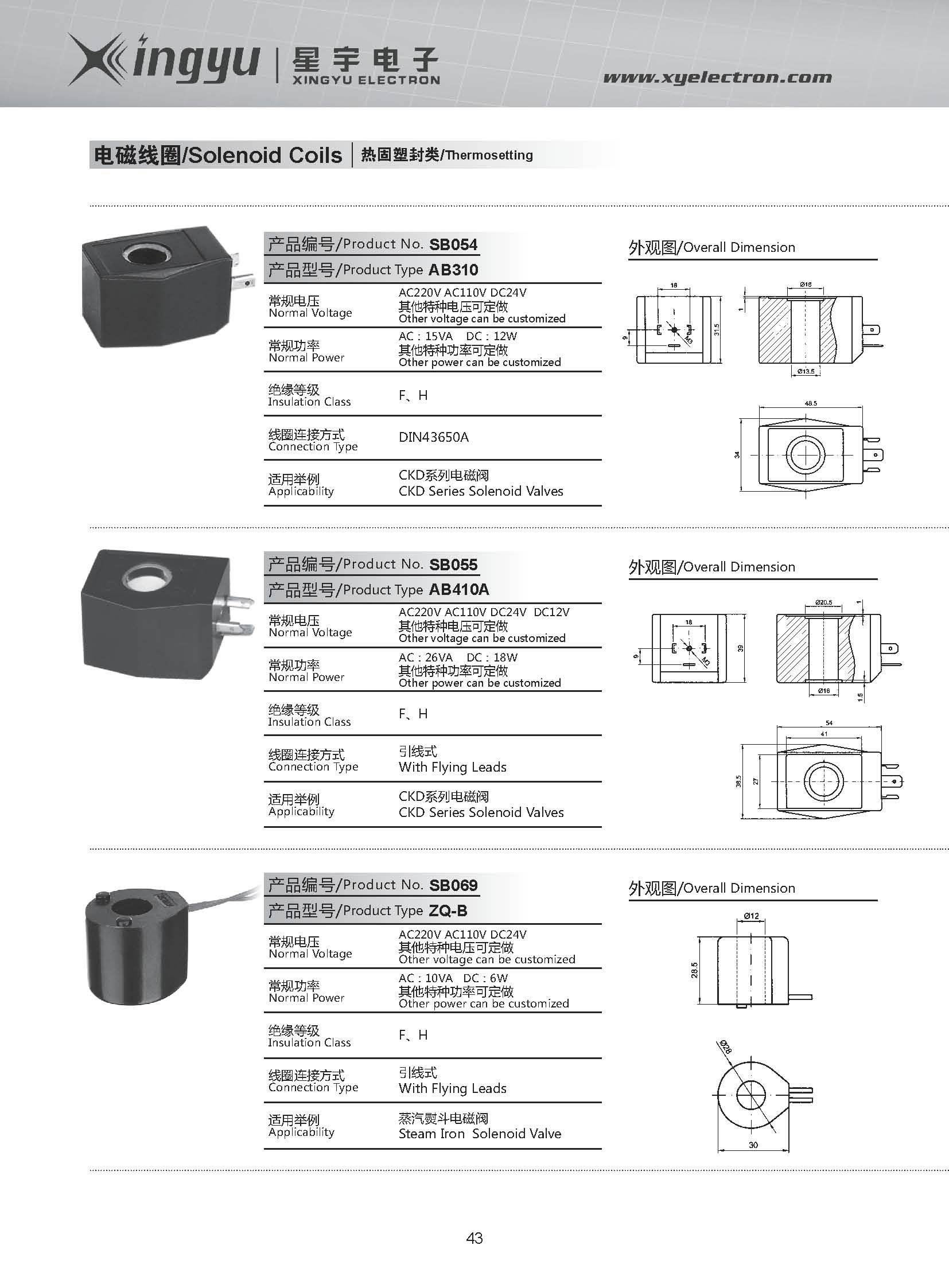

Solenoid Coils 전체카탈로그 SB054 도면

●(Only Coil)Solenoid Valve) (AC110V)

(bottom dia=13.5mm) (top dia=15mm, 17.5mm ) (height=43.5mm)

●SB054-AC110V (DIN43650A) (DME9421)

(for AB310A) (for AB31, AG31)

●SB054-AC110V(lead wire) (DME9418)

(for AB310B) (for AB31, AG31) (2wire of all blue color)

●(Only Coil) Solenoid Valve) (AC220V)

(bottom dia=13.5mm) (top dia=15mm, 17.5mm ) (height=43.5mm)

●SB054-AC220V (DIN43650A) (DME9420)

(for AB310A) (for AB31 , AG31)

●SB054-AC220V (lead wire) (DME9417)

(for AB310B) (for AB31 , AG31) (2wire of all red color)

●(Only Coil  Solenoid Valve) (DC24V)

(bottom dia=13.5mm) (top dia=15mm, 17.5mm ) (height=43.5mm)

●SB054-DC24V (DIN43650A) (DME9422)

(for AB310A) (for AB31 , AG31)

●SB054-DC24V (lead wire) (DME9419)

(for AB310B)(for AB31 , AG31)

(2wire of one wire black color,one wire red color)

●( CKD solenoid valve AB31 coil) (CKD 솔레노이드 밸브 AB31 coil )

● CKD solenoid valve AG31 coil) (CKD 솔레노이드 밸브 AG31 coil )

●( CKD 솔밸브 AB31 코일) (CKD 솔레노이드 밸브 AB31 코일 )

● CKD 솔밸브 AG31 코일) (CKD 솔레노이드 밸브 AG31 코일)
