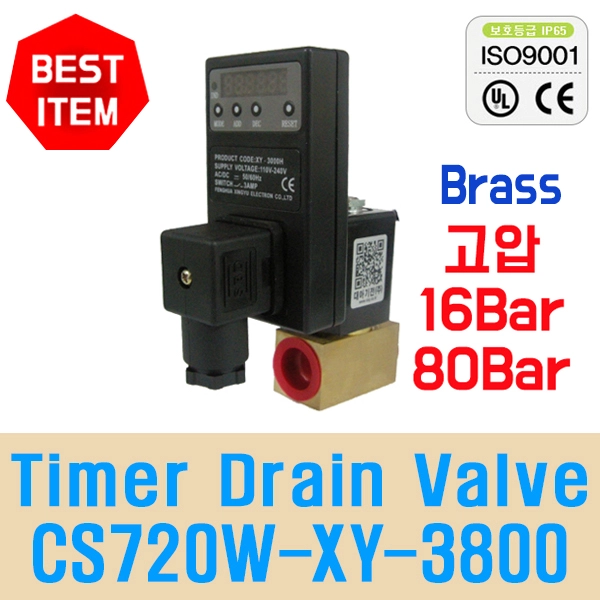

CS720W-XY-3800●XY-3800H●XY-3800L●SB237●XY-3000H●XY-3000L●CS720W-XY3800●2/2way NC Timer Drain Valve)●RFS 타이머 드레인 밸브●(G1/4 F~G1/2 F)●(0~80bar)●(RFS)

CS Series 카탈로그 CS Series 코드번호

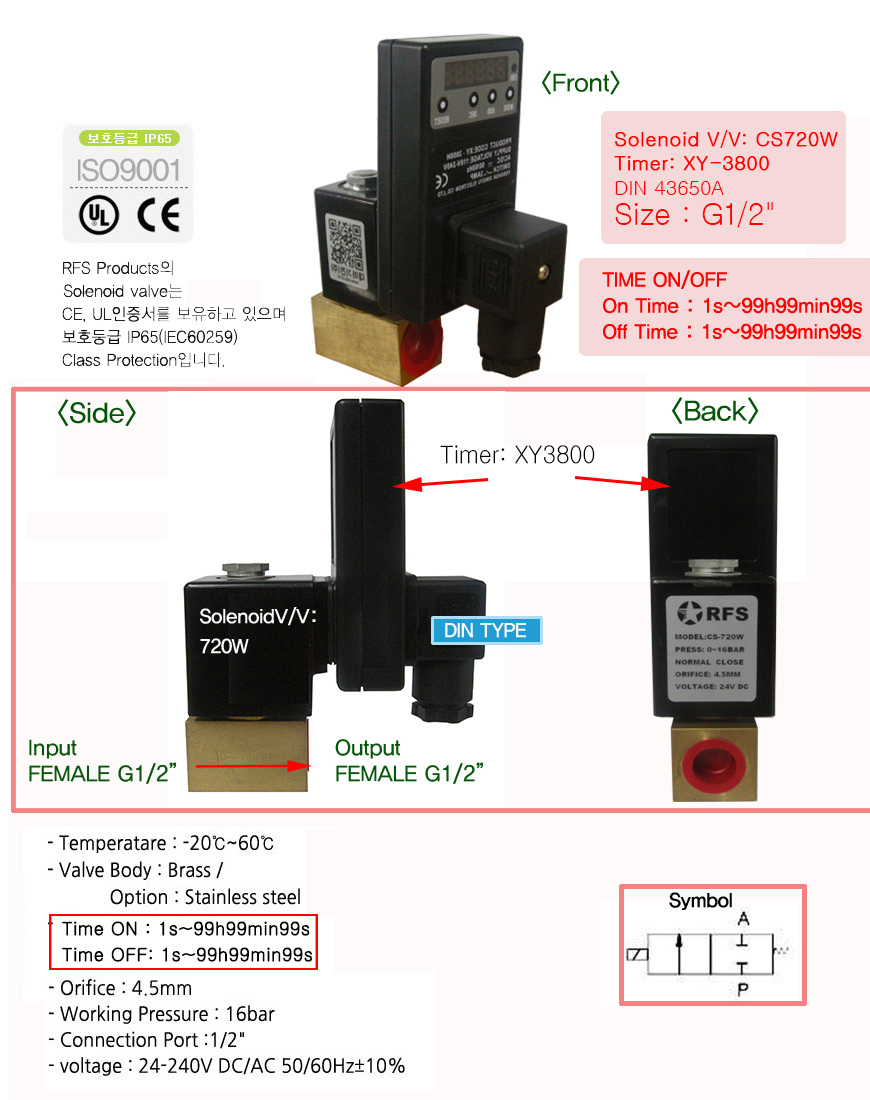

XY-3800H & XY-3800L 카탈로그 & 매뉴얼

●(2/2way, NC, bress)

(Automatic drain valve  with timer XY-3800H, XY3800L) (16bar)

(body=brass) (seal=viton) (orifice=4.5mm)

●CS720W-15-(XY-3800H)- (16bar)-2D-AC220V (G1/2 F) (DME7176)

●CS720W-15-(XY-3800H)-(16bar)-1D-AC110V (G1/2 F) (DME8223)

●CS720W-15-(XY-3800L)-(16bar)-8D-DC24V (G1/2 F) (DME8242)

●(2/2way, NC, bress)

(Automatic drain valve  with timer XY-3800H, XY-3800L) (80bar)

(body=brass) (seal=viton) (orifice=2mm)

●CS720W-15-(XY-3800H)- (80bar)-2D-AC220V (G1/2 F)

●CS720W-15-(XY-3800H)-(80bar)-1D-AC110V (G1/2 F)

●CS720W-15-(XY-3800L)-(80bar)-8D-DC24V (G1/2 F)

●(only, Timer XY-3800H  or  HY-3800L)

●XY-3800H(SB237)-(110~240V AC/DC)-(50~60Hz)( DME5427)

(On Time=1sec~99h/50min/59sec) (Off Time=1sec~99h/50min/59sec)

●XY-3800L(SB237)-(7~36V/AC DC)-(50~60Hz) (DME2048)

(On Time=(1sec~99h/50min/59sec) (Off Time=(1sec~99h/50min/59sec)

●(적용 coil=SB256=AC220V , SB256=AC380V , SB257=DC24V)

●AC coil UL인증품가능
