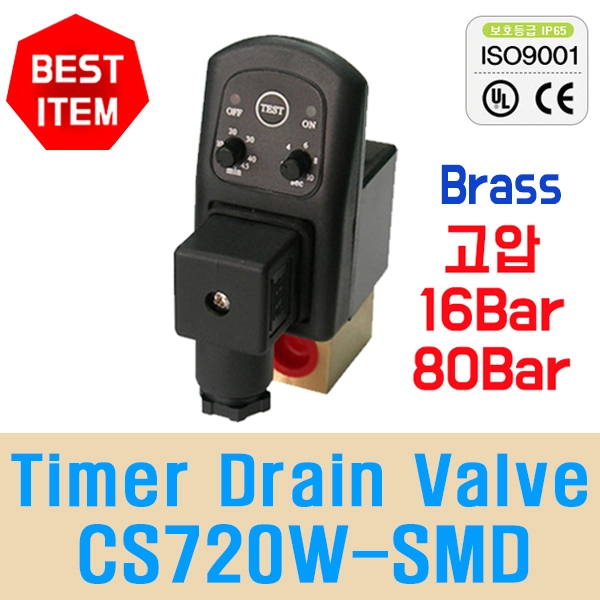

CS720W-08-SMD●CS720W-15-SMD●CS720W08-SMD●CS720W15-SMD●2/2way NC Timer Drain Valve●RFS 타이머드레인밸브●RFS 자동 드레인 밸브●RFS 오토드레인 밸브●RFS 타임 드레인 밸브●RFS 타이마 드레인 밸브●(G1/4 F~G1/2 F)●(0~16bar)●(0~80bar)●(RFS)

                 CS Series 카탈로그 CS Series 코드번호

●(2/2way, NC,  bress) (Timer Drain Valve  with timer SMD) (80bar)

(body=brass) (seal=viton) (orifice=2mm)

●CS720W-08-SMD-(80bar)-2D-AC220V (G1/4 F) (DME3394)

●CS720W-08-SMD-(80bar) -1D-AC110V (G1/4 F) (DME8274)

●CS720W-08-SMD-(80bar) -8D-DC24V (G1/4 F) (DME8275)

●(2/2way, NC, bress) (Timer Drain Valve  with timer SMD) (80bar)

(body=brass) (seal=viton) (orifice=2mm)

●CS720W-15-SMD-(80bar)-2D-AC220V (G1/2 F) (DME3378)

●CS720W-15-SMD-(80bar)-1D-AC110V (G1/2 F) (DME8412)

●CS720W-15-SMD-(80bar) -8D-DC24V (G1/2 F) (DME8413)

●CS720W-15-SMD-(80bar) -9D-AC380V (G1/2 F) (DME8425)

●(2/2way, NC, bress) (Timer Drain Valve  with timer SMD) (16bar)

(body=brass) (seal=viton) (orifice=4.5mm)

●CS720W-15-SMD-(16bar)-2D-AC220V (G1/2 F) (DME3217)

●CS720W-15-SMD-(16bar)-1D-AC110V (G1/2 F) (DME7080)

●CS720W-15-SMD-(16bar) -8D-DC24V (G1/2 F) (DME8241)

●CS720W-15-SMD-(16bar) -9D-AC380V (G1/2 F) (DME8416)

●(Only, 2/2way, NC, Solenoid valve) (80bar)

(body=brass) (seal=viton) (orifice=2mm)

●CS720W-15-(80bar)-2D-AC220V (G1/2 F) (DME0413)

●(Only, 2/2way, NC, Solenoid valve) (16bar)

(body=brass) (seal=viton) (orifice=4.5mm)

●CS720W-15-(16bar)-2D-AC220V ( G1/2 F) (DME0417)

●(Only, Timer, SMD)

●SMD-720(SB234)-(24~240V AC/DC) (50~60Hz) (DME2044)

(On Time=0.5sec~10sec) (Off Time=0.5min~45min)

●CS720W-08-SMD-(orifice=2mm)-(80bar) (G1/4 F or 1/2 F)

●CS720W-15-SMD-(orifice=2mm)-(80bar) (G1/4 F or 1/2 F)

●CS720W-08-SMD-(orifice=4.5mm)-(16bar) (G1/4 F or 1/2 F)

●CS720W-15-SMD-(orifice=4.5mm)-(16bar) (G1/4 F or 1/2 F)

●(적용 coil=SB256=AC220V , SB256=AC380V , SB257=DC24V)

●AC coil UL인증품가능
