A150-R-B●(A150RB)●(SUS304,316)●2way Stainless Steel Wireless control motorized Remote ball Valve●리모트 콘트롤 엑츄레다 볼 밸브●리모트볼밸브●(10bar)●(15 Nm)●(IP67)●(G11/4~G2)●(TON,DME)
MD
sold out icon
0원

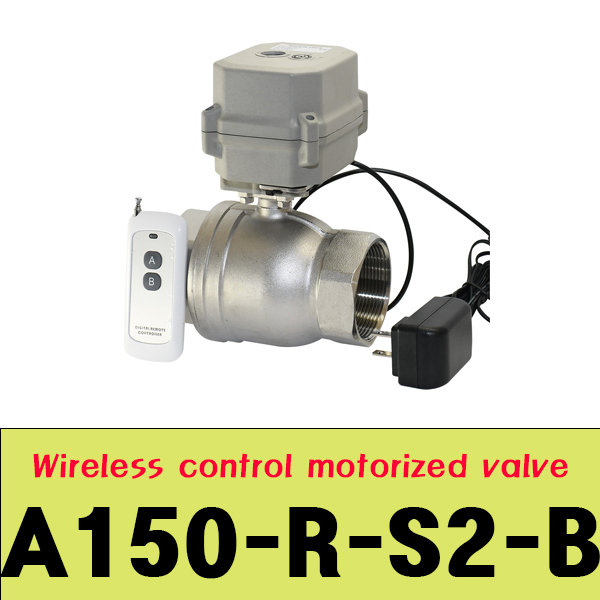

●(SUS304, CR301) Wireless control motorized Remote ball Valve

(seat=PTFE) (stem=FKM) (body=SUS304/SUS316 (optional))

(Working current=≤500mA) (Life Time=100000 times)

(open/close time=15 sec) (Voltage=DC12V with power adapter ) (working pressure =10bar) (5wire, 1.5m) (max torque force=15 Nm)

(Circulation Medium=Fluid, Air) (Protection class =IP67)

(with open/close indicator, with manual override)

● A150-R32-S2-B (G 1-1/4"  Female)

(seat=PTFE) (stem=FKM) (body=304)

(Voltage=DC12V with power adapter)

● A150-R40-S2-B (G 1-1/2"  Female)

(seat=PTFE) (stem=FKM (body=304)

(Voltage=DC12V with power adapter )

● A150-R50-S2-B (G 2"  Female) (CSQ5053)

(seat=PTFE) (stem=FKM) (body=304)

(Voltage=DC12V with power adapter )


● A150-R32-S2-B (G 1-1/4"  Female)

(seat=FTFE) (stem=FKM) (body=304)

(Voltage=DC12V with power adapter)

● A150-R40-S2-B (G 1-1/2"  Female)

(seat=FTFE ) (stem=PTFE) (body=304)

(Voltage=DC12V with power adapter )

● A150-R50-S2-B (G 2"  Female)

(seat=FTFE ) (stem=PTFE) (body=304)

(Voltage=DC12V with power adapter )



●(SUS316, CR301) Wireless control motorized Remote ball Valve

● A150-R32-S2-B (G 1-1/4"  Female)

(seat=PTFE) (stem=FKM) (body=316)

(Voltage=DC12V with power adapter)

● A150-R40-S2-B (G 1-1/2"  Female)

(seat=PTFE) (stem=FKM (body=316)

(Voltage=DC12V with power adapter )

● A150-R50-S2-B (G 2"  Female)

(seat=PTFE) (stem=FKM)  (body=316)

(Voltage=DC12V with power adapter )


● A150-R32-S2-B (G 1-1/4"  Female)

(seat=PTFE) (stem=PTFE) (body=316)

(Voltage=DC12V with power adapter)

● A150-R40-S2-B (G 1-1/2"  Female)

(seat=PTFE) (stem=PTFE) (body=316)

(Voltage=DC12V with power adapter )

● A150-R50-S2-B (G 2"  Female)

(seat=PTFE) (stem=PTFE) (body=316)

(Voltage=DC12V with power adapter )


● Product Features;

● Wireless control, communications frequency 433M, communication distance 100 Meter.

●  DC12V external power supply and Open or close the valve by the remote controller.

● Small size,suitable for small equipment.

● Stainless steel and copper gear design, working life of 100000 times.

● Protection class IP67


●Features

● 무선 제어, 통신 주파수 433M, 통신 거리 100 미터.
● DC12V 외부 전원 공급 장치 및 리모컨에 의해 밸브를 열고 닫음.
● 작은 크기, 작은 장비에 적합 합니다.
● 스테인레스 스틸 및 구리 기어 디자인, 100000 배의 작업 수명.
● 보호 클래스 IP67
