  VM series 카탈로그

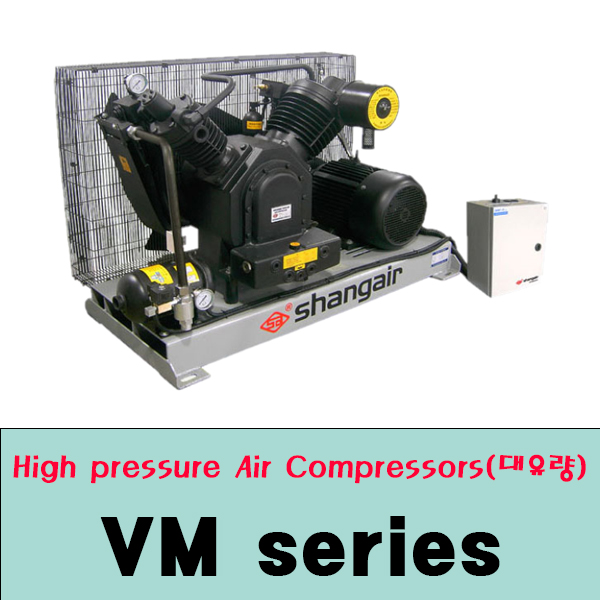

●high pressure  Air compressors (Horizontal single set)

●30VM-0735 (csq5214)

(Air Flow-0.35N㎥ /min , Pressure-3.5Mpa, Power-7.5KW)

● 37VM-0750 (csq5217)

(Air Flow-0.40N㎥ /min , Pressure-5.0Mpa, Power-7.5KW)

● 37VM-0970

(Air Flow-0.40N㎥ /min , Pressure-7.0Mpa, Power-9.0KW)

● 39VM-0940

(Air Flow-0.60N㎥ /min , Pressure-4.0Mpa, Power-9.0KW)

● 39VM-1140

(Air Flow-0.8N㎥ /min , Pressure-4.0Mpa, Power-11.0KW)


● The valve assembly adopts the "hexagonal cylindrical straight flow valve" component independently developed by Shangair and the new technology of "reed valve valve disc break prevention", which effectively extends the service life of the valve disc.

●  High efficiency, low energy consumption.

●  High reliability, safe operation 24 hours a day.

●  Adopt the muffler filter independently developed and designed by Shangair, with low noise and anti-pollution.

●  Low discharging  temperature.

● The new dynamic balance design makes the vibration intensity drop significantly.

● Low oil consumption.

● The piston ring adopts a single casting chrome plated ring, and the service life is significantly improved.

● The units are air-cooling, reducing installation costs.

-제품 주문시 문의 요망
