SLZ●(same YCH41)●2/2way SUS316 NC SUS316 High pressure solenoid valve●SUS316스텐레스 고압솔레노이드밸브●SUS316 고압솔레노이드밸브●SUS316 고압밸브●(Hot water,air,water,oil)●(0.1bar~110bar)●(G1/4 F~G1/2 F)●(San,DME)

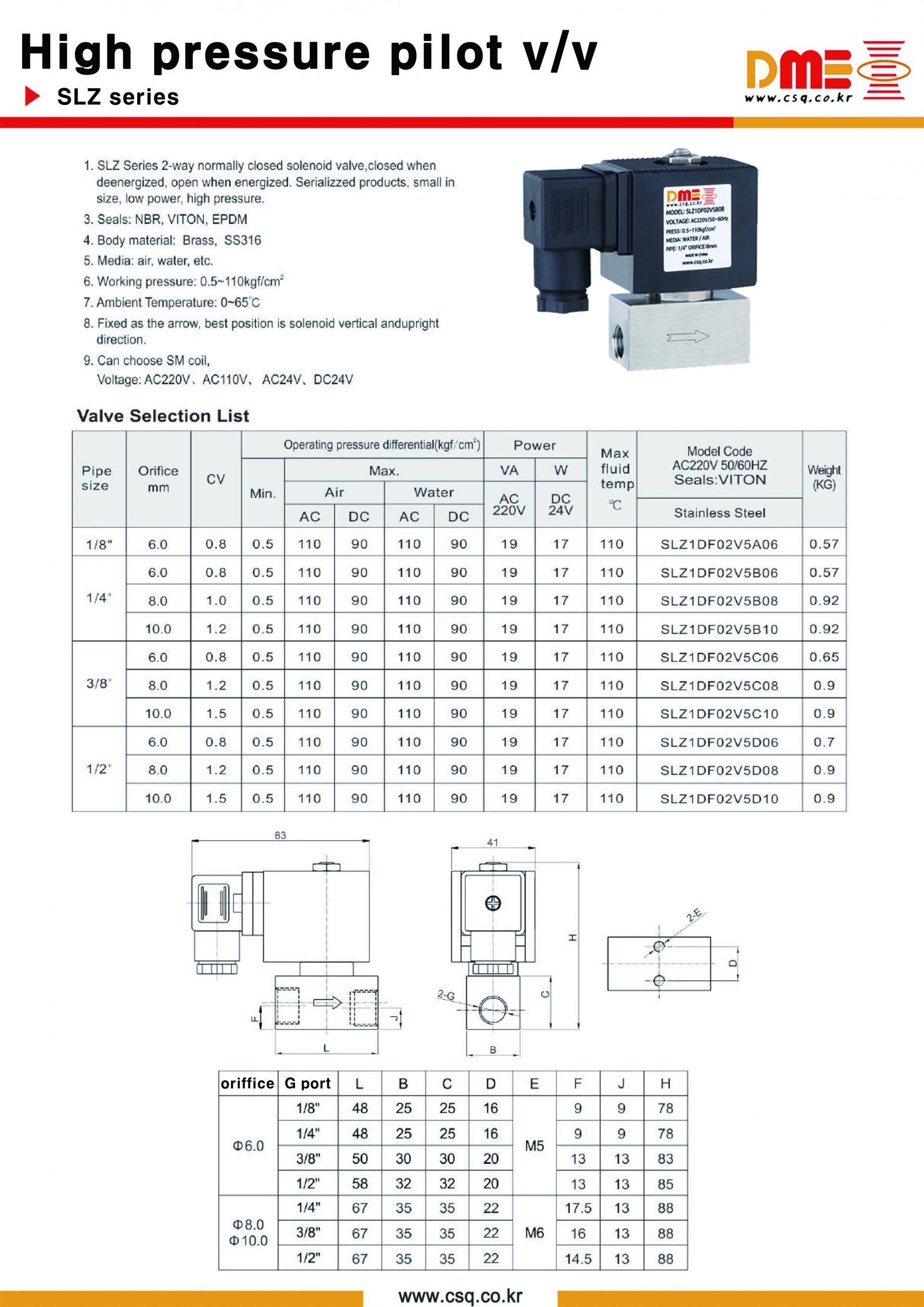

SLZ카탈로그

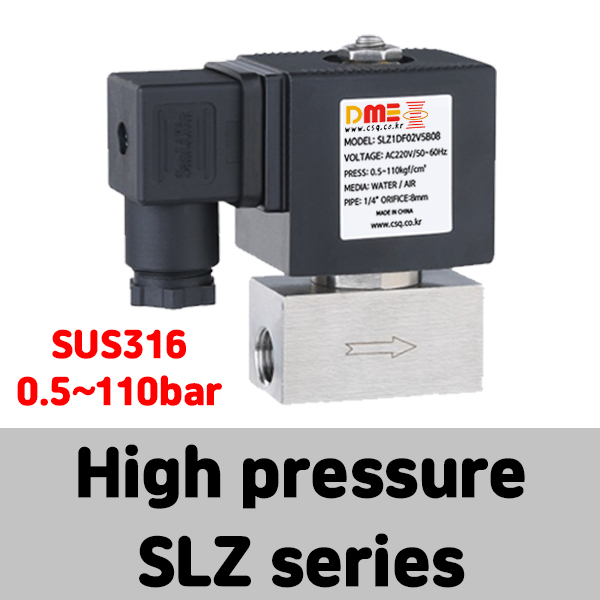

●(2/2way,NC,SUS) SUS316 High pressure solenoid valve

AC=(pressure=mine 0.05Mpa~max 11Mpa(110bar))

DC=(pressure=mine 0.05Mpa~max 9Mpa(90bar))

(seal=NBR , temp=0~65C)

(seal=Viton , temp=0~120C)

(seal=EPDM , temp=0~120C)

(body=SUS316)

(Medum=Hot water, air, water, oil)

●SLZ1DF02V5B08 (AC220V) (G1/4 F) (csq5277)

(Seal=Viton)

(orifice=8mm)

(pressure=mine 0.05Mpa~max 11Mpa)

●SLZ1DF02V5B08 (DC24V) (G1/4 F) (csq5630)

(Seal=Viton)

(orifice=8mm)

(pressure=mine 0.05Mpa~max 9Mpa)

●SLZ1DF02V5B08 (DC12V) (G1/4 F) (csq5777)

(Seal=Viton)

(orifice=8mm)

(pressure=mine 0.05Mpa~max 9Mpa)

●SLZ1DF02V5D10 (AC220V) (G1/2 F) (csq5278)

(Seal=Viton)

(orifice=10mm)

(pressure=mine 0.05Mpa~max 11Mpa )

●SLZ1DF02V5D10 (DC24V) (G1/2 F) (csq5631)

(Seal=Viton)

(orifice=10mm)

(pressure=mine 0.05Mpa~max 9Mpa )

●SLZ1DF02V5D10 (DC12V) (G1/2 F) (csq5778)

(Seal=Viton)

(orifice=10mm)

(pressure=mine 0.05Mpa~max 9Mpa )

●only coil(SLZ series)

●SLZ coil-(AC220V) (csq5680) (CSQ1320)

●SLZ coil-(AC110V) (CSQ5780) (DME8672)

●SLZ coil-(DC24V) (csq5679) (DME9585)

●SLZ coil-(DC12V) (csq5779) (DME452O)

●●호환되는 coil = SB257
