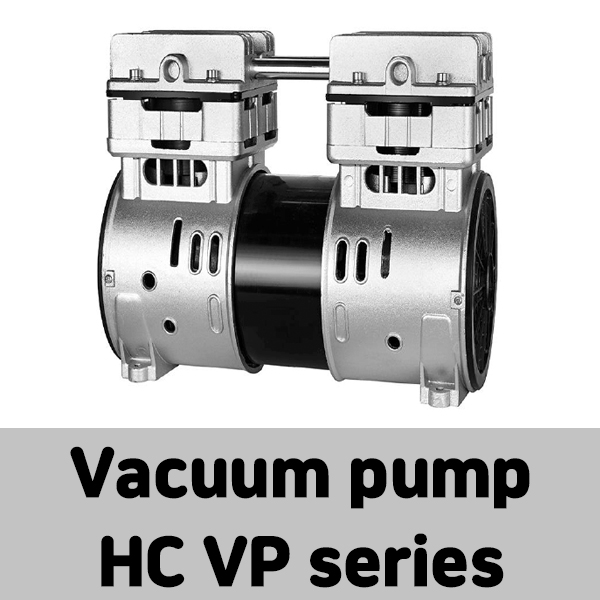

HC VP 카탈로그

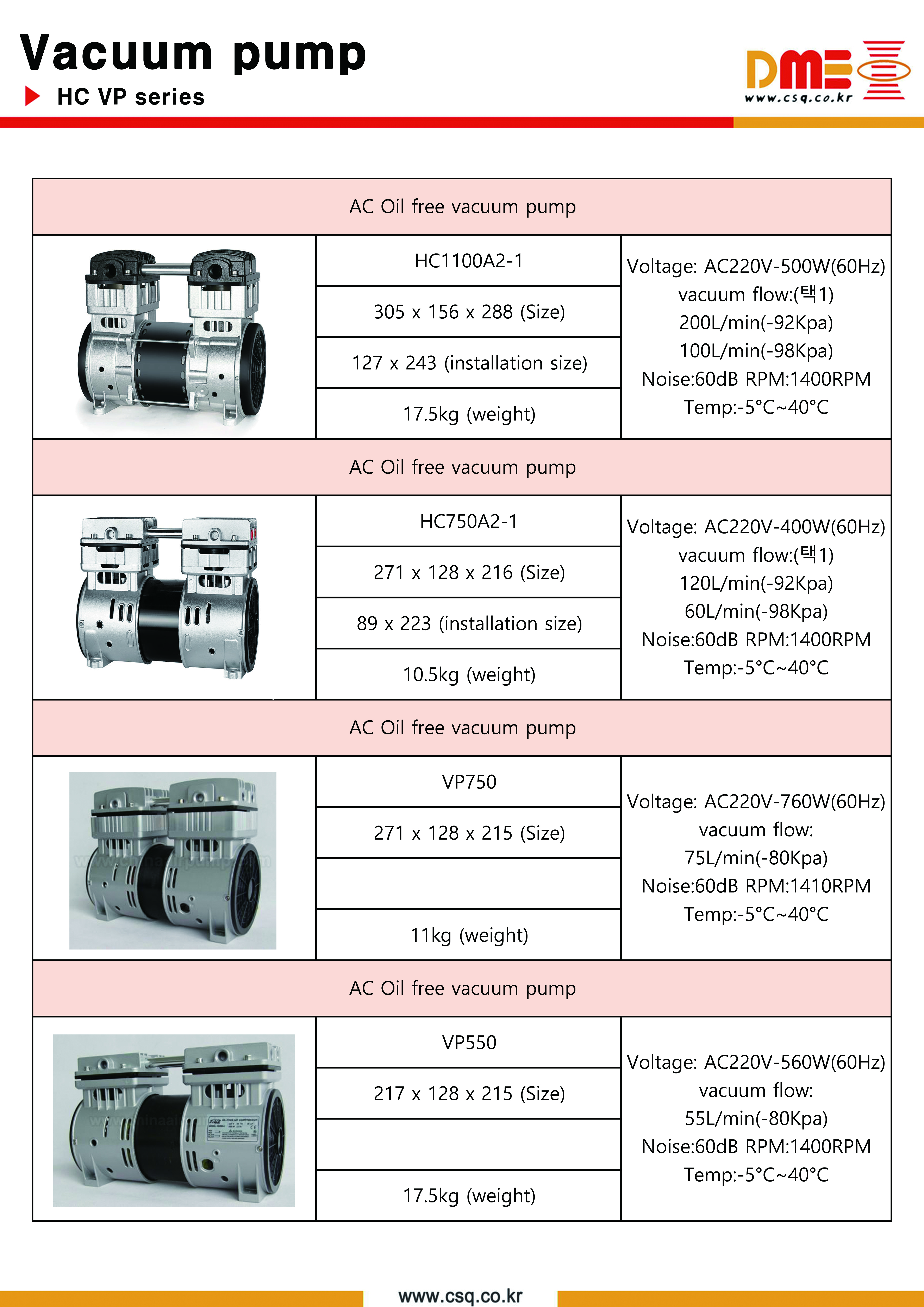

●Oil Free  Vacuum Pump  (Two-grade)

● HC1100A2-1(-98Kpa Two-grade vacuum)-(Power=500W, AC220/50-60Hz)-(flow=95L/min) (MAD1271)

● HC750A2-1(-98Kpa Two-grade vacuum)-(Power=400W, AC220/50-60Hz)-(flow=60L/min) (MAD1267)

●Oil Free  Vacuum Pump  (Two-grade)

●VP750-(760W,AC220V/50~60Hz)-(vacuum=-980mbar)-(Two-grade vacuum) (flow=75L/min) (MAD1269)

●VP550-(Power=560w,AC220V/50-60Hz)-(vacuum=-980mbar)-(Two-grade vacuum) (flow=55L/min)  (MAD1268)

●Oil Free Air compressor (Two-grade)

●SW750-AC220V(760W,AC220V/50~60Hz) (Pressure=7bar)-(Two-grade  Air compressor ) (flow=77L/min) (MAD1270)

●펌프모터 6wire (빨강색 2wire power연결) (검정색 2 wire 콘텐샤 연결)

(노랑색 + 초록색 1wire 접지선)

●콘덴샤 2wire 검은색은  펌프모터  검은색 2wire에 연결한다

●오일레스진공펌프 ●의료용 진공펌프 ●의료용 콤프레샤

●치과용 진공펌프●치과용 콤프레샤  ●Sution Pump ●흡입기
