                                              DZH Series 카탈로그

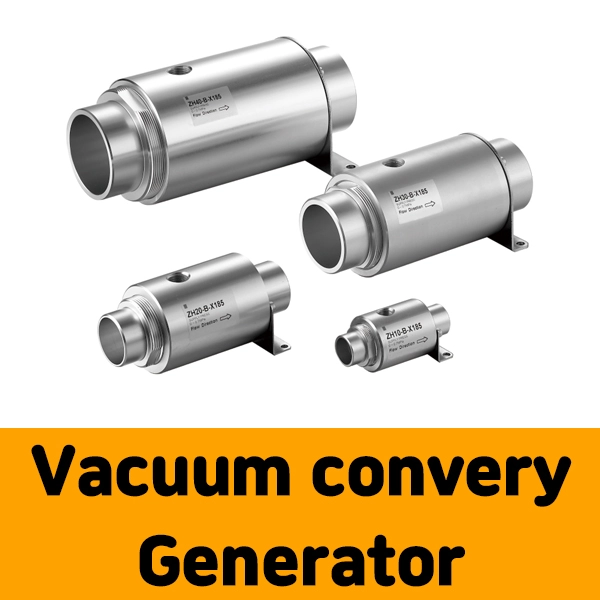

●(AL) Vacuum convery Generator(at 5bar=-610KPa)

(vacuum flow=710L/min) (air consumption=160L/min)

●DZH10-B-X185(vacuum=G1/4 F) (air suppie=G1/8 F)

(vacuum IN, Ex=G19mm) (orifice=13mm)(body=AL) (csq5392)

●(AL) Vacuum convery Generator (at 5bar=600KPa)

(vacuum flow=610L/min) (air consumption=240L/min)

●DZH20-B-X185(vacuum=G1/4 F) (air suppie=G1/4 F)

(vacuum IN, Ex=30mm) (orifice=21.6mm) (body=AL) (csq5393)

●(AL) Vacuum convery Generator(at 5bar=-600KPa)

(vacuum flow=3000L/min) (air consumption=700L/min)

●DZH30-B-X185(vacuum=G1/4 F)(air suppie=G1/4 F)

(vacuum Ex=50mm) (orifice=30mm)(body=AL) (csq5394)

●(AL) Vacuum convery Generator (at 5bar=-600KPa)

(vacuum flow=4500L/min) (air consumption=1400LL/min)

●DZH40-B-X185(vacuum=G1/4 F) (air suppie=G3/8 F)

(vacuum Ex=60mm) (orifice=42mm) (body=AL) (csq5395)

●SMS사 new Model

●ZHV10 ●ZHV20 ●ZHV30 ●ZHV40
