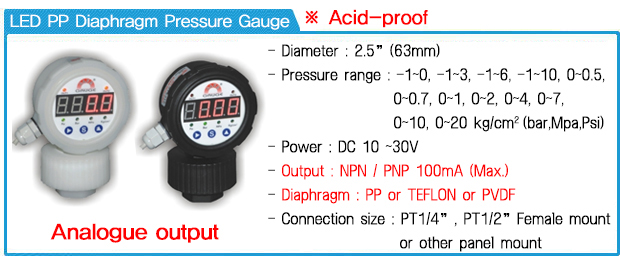

●LED, PP, Single side, Diaphragm Pressure Gauge (dia=63mm)

●accuracy=(1.5%FSD) ●power=(DC10~30V)

●pressure credit=(Kgf/cm, bar, Mpa, psi)

●max pressure=(0~20bar) (0~10Kgf) (2Mpa) (300Psi)

●output=(2set+4 ~20m)

●Casing+BEZEL=(PP) ●capsule=(VITON )

●LED, PP, Single side, Diaphragm Pressure Gauge (dia=63mm)

(output=2set(NPN or PNP) +4 ~20m) (power=DC10~30V)

(Casing+BEZEL=PP) (capsule=Viton)

●SS-CM19V/25-0/10DZ6M (bottom G1/2 F) (DME4661)

(range=10kg, 10bar, 1mpa, 150psi) (accuracy=1.5%FSD)

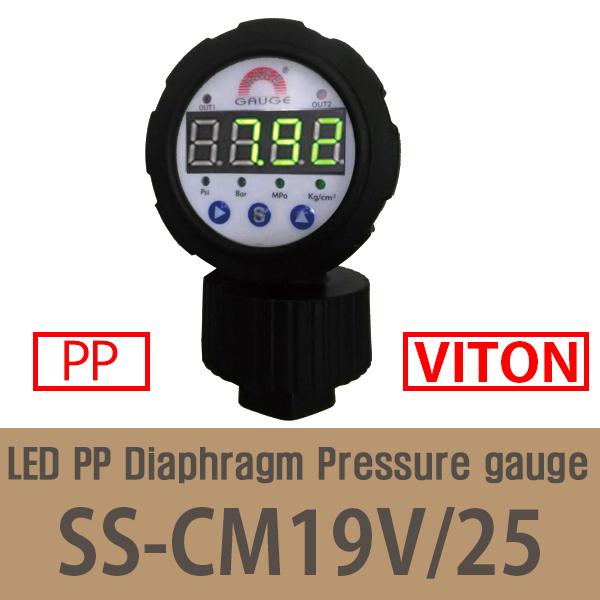

●SS-CM19V/25-0/5DZ6M (bottom G1/2 F) (CSQ4595)

(range=5kg, 5bar, 0.5mpa, 75psi) (accuracy=1.5%FSD)

●SF-CFM-19-25 ●SF-FM-19V-25 ●SF-EFM-19-25

●SF-CM-19-25 ●SF-M-19V-25 ●SF-EM-19-25

●SS-EM19-25  ●SS-M19V-25 ●SS-EM-19-25  ●SS-CM-19-25
