A285 catalog  메뉴얼(영문)  메뉴얼(한글)

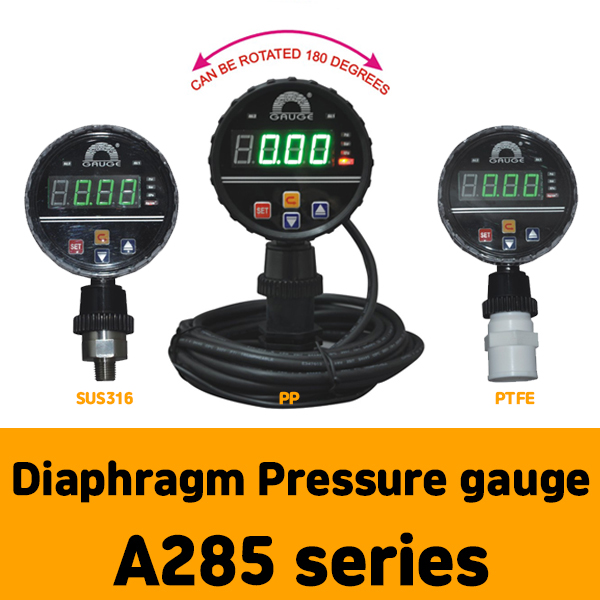

●(3inch, 4LED, PP) Rotatable Digital Pressure Meter (1.0%FS)

(temp=-40~120°) (power=10~30VDC) (capsule, BEZEL=PP)

(wire=5m)(Dimeter=75mm) (pressure Range=kgf/cm2 .bar, Mpa,Psi)

●(PP) A285-3-0/20-5Mㅡ(2MPa) (PT1/2 Female) (csq5468)

(output=2NPN + 4~20mA + RS485)

●(3inch, 4LED, SUS316) Rotatable Digital Pressure Meter (1.0%FS)

(temp=-40~120°) (power=10~30VDC) (capsule, BEZEL=PP)

(wire=5m)(Dimeter=75mm) (pressure Range=kgf/cm2 .bar, Mpa,Psi)

●(SUS316) A285-3-0/20-5Mㅡ(2MPa) (PT1/2 Female) (csq5482)

(output=2NPN + 4~20mA + RS485)

●(3inch, 4LED, PTFE) Rotatable Digital Pressure Meter (1.0%FS)

(temp=-40~120°) (power=10~30VDC) (capsule, BEZEL=PP)

(wire=5m)(Dimeter=75mm) (pressure Range=kgf/cm2 .bar, Mpa,Psi)

●(PTFE) A285-3-0/20-5Mㅡ(2MPa) (PT1/2 Female) (csq5483)

(output=2NPN + 4~20mA + RS485)
